The Avant 500 Series is a powerful and versatile multi-purpose loader, offering an excellent combination of lifting capacity, reach and manoeuvrability in a compact package.
A popular choice for landscaping, arboriculture, property maintenance, equestrian and agricultural work, the 500 Series is designed for operators who need greater lifting capability while still being able to work efficiently in confined spaces.
The telescopic boom provides impressive reach and lifting height, while the hydrostatic 4WD system delivers smooth, precise control across a variety of surfaces and working conditions. Avant’s articulated design also makes the loader exceptionally agile, particularly when working around buildings, yards and restricted job sites.
Compatible with an extensive range of Avant attachments, the 500 Series can tackle everything from material handling and groundcare to digging, mowing, sweeping and winter maintenance.
With excellent operator visibility, intuitive controls and a range of optional equipment available, the Avant 500 Series is built to make demanding everyday jobs quicker, easier and more productive.
More lift. More reach. More possibilities.
STRONG LIFTING CAPACITY WITH EXCELLENT REACH & STABILITY
VERSATILE. IDEAL FOR LANDSCAPING, TREE & PROPERTY MAINTENANCE.
EASY TO OPERATE. SMOOTH CONTROLS & WIDE RANGE OF ATTACHMENT OPTIONS

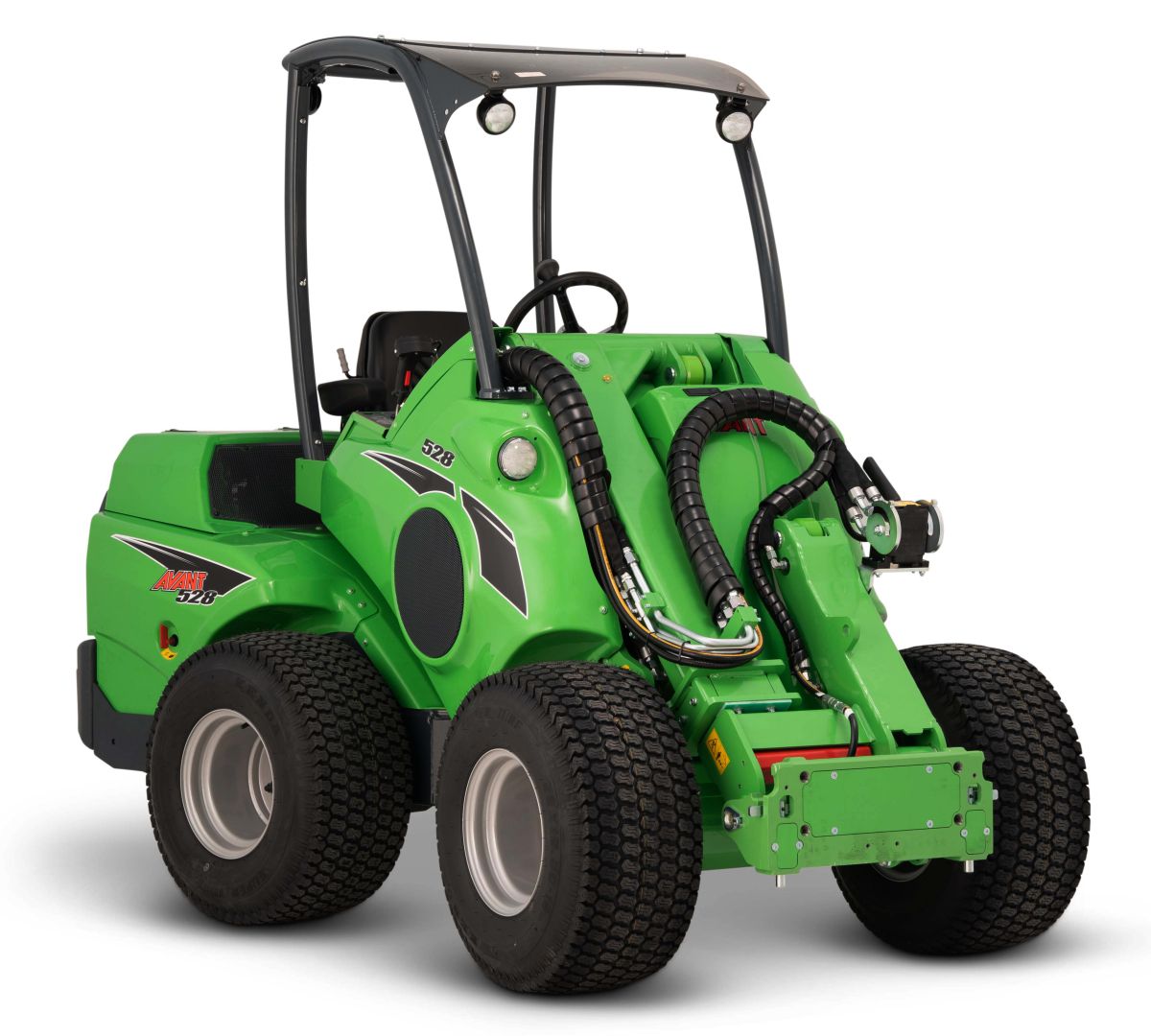

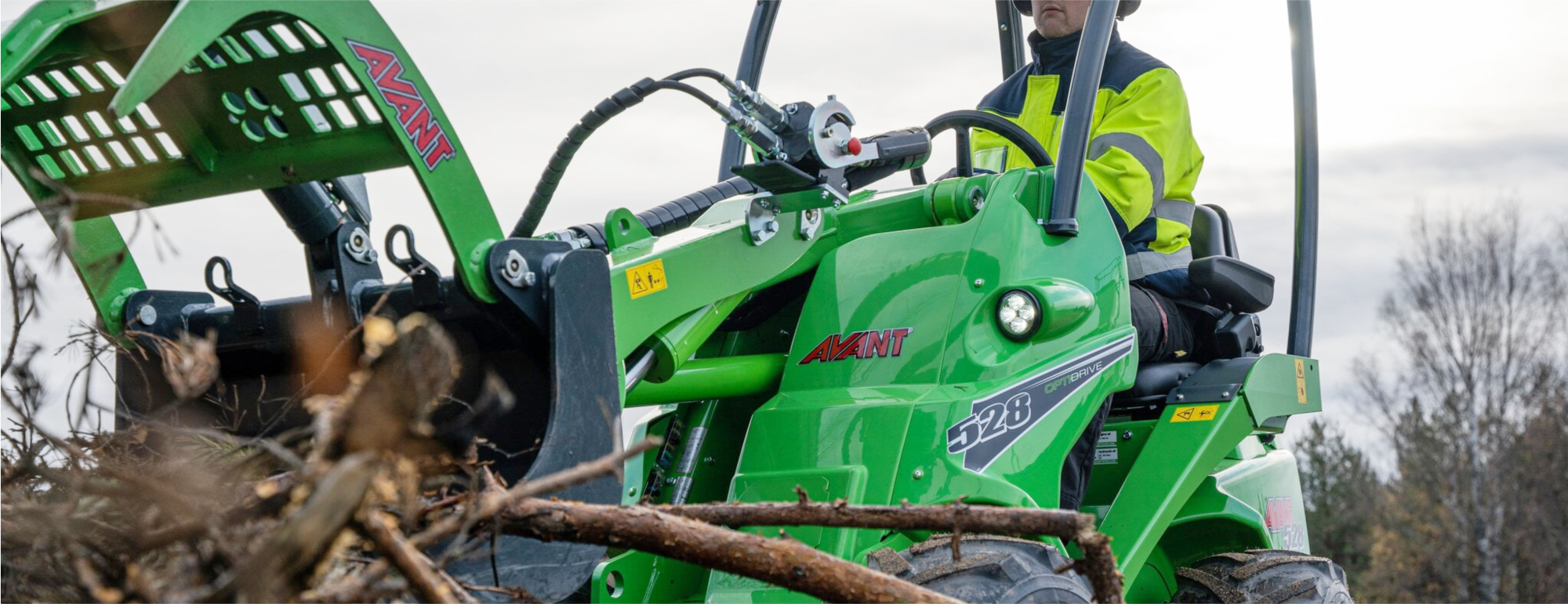

AVANT 528
The Avant 528 is a versatile and cost-effective loader for professionals who need a robust machine for daily work. Great lifting capacity, compact dimensions, and reliable basic hydraulics make the 528 unbeatable in terms of price-performance ratio in its own size of class. This best-selling Avant model combines practicality, economy, and versatility, making it a great solution for a wide variety of worksites.
TECHNICAL SPECIFICATIONS
- Standard wheels : 23×10.50-12 TR/GR
- Tyre tread : Tractor/Grass
- Transmission : Hydrostatic, Avant Optidrive®
- Wheel size : 23 x 10.50-12
- Telescopic boom : Standard
- Width : 1130 mm
- Length : 2610 mm
- Height : 1980 mm
- Telescope length : 600 mm
- Weight ROPS / GT : 1420 kg / 1570 kg
- Weight : 1420 kg
- Turning radius inside/outside : 995 mm / 2050 mm
- Pulling force max. : 950 kp
- Drive speed : 12 km/h
- Lift Height : 2790 mm
- Lift Capacity : 950 kg
- Auxiliary hydraulics, oil flow / pressure : 36 l/min / 200 bar
- Engine make and type : Kubota D1105 Stage V
- Engine power standard : ECE R120
- Fuel : Diesel
- Hydraulic oil cooler : Standard
- Engine power : 19 kW (26 hp)
- Maximum torque : 72 Nm @ 2200 rpm
