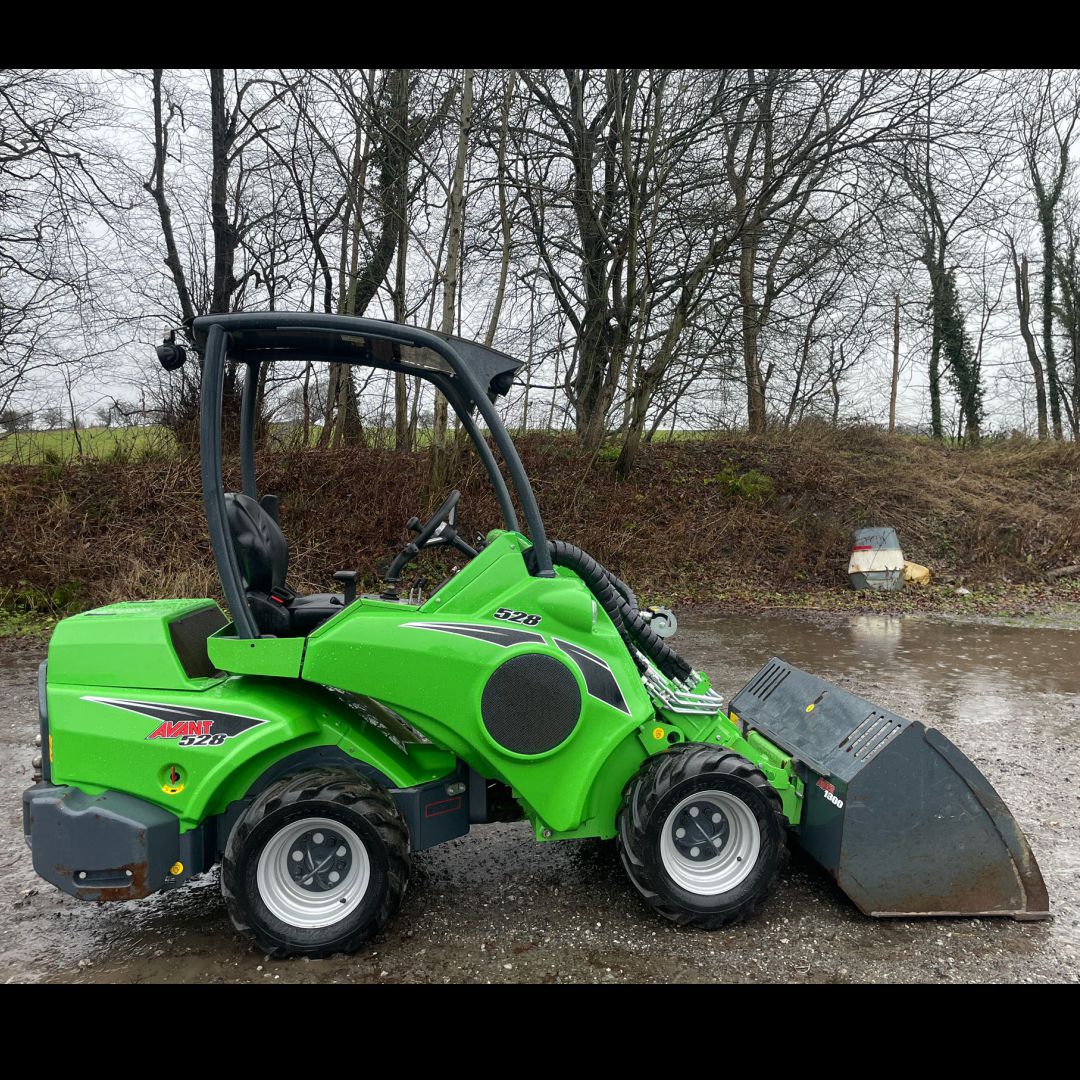

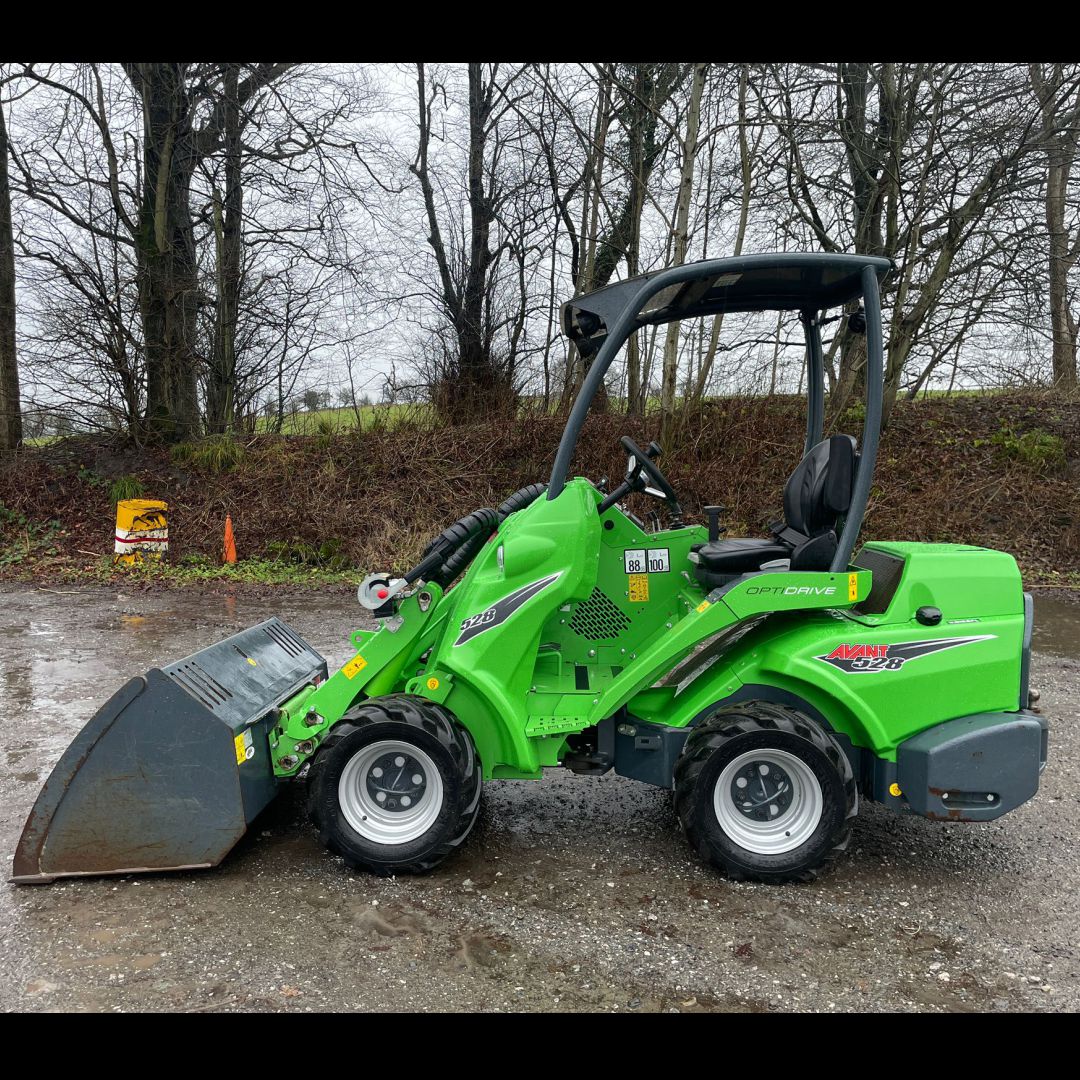

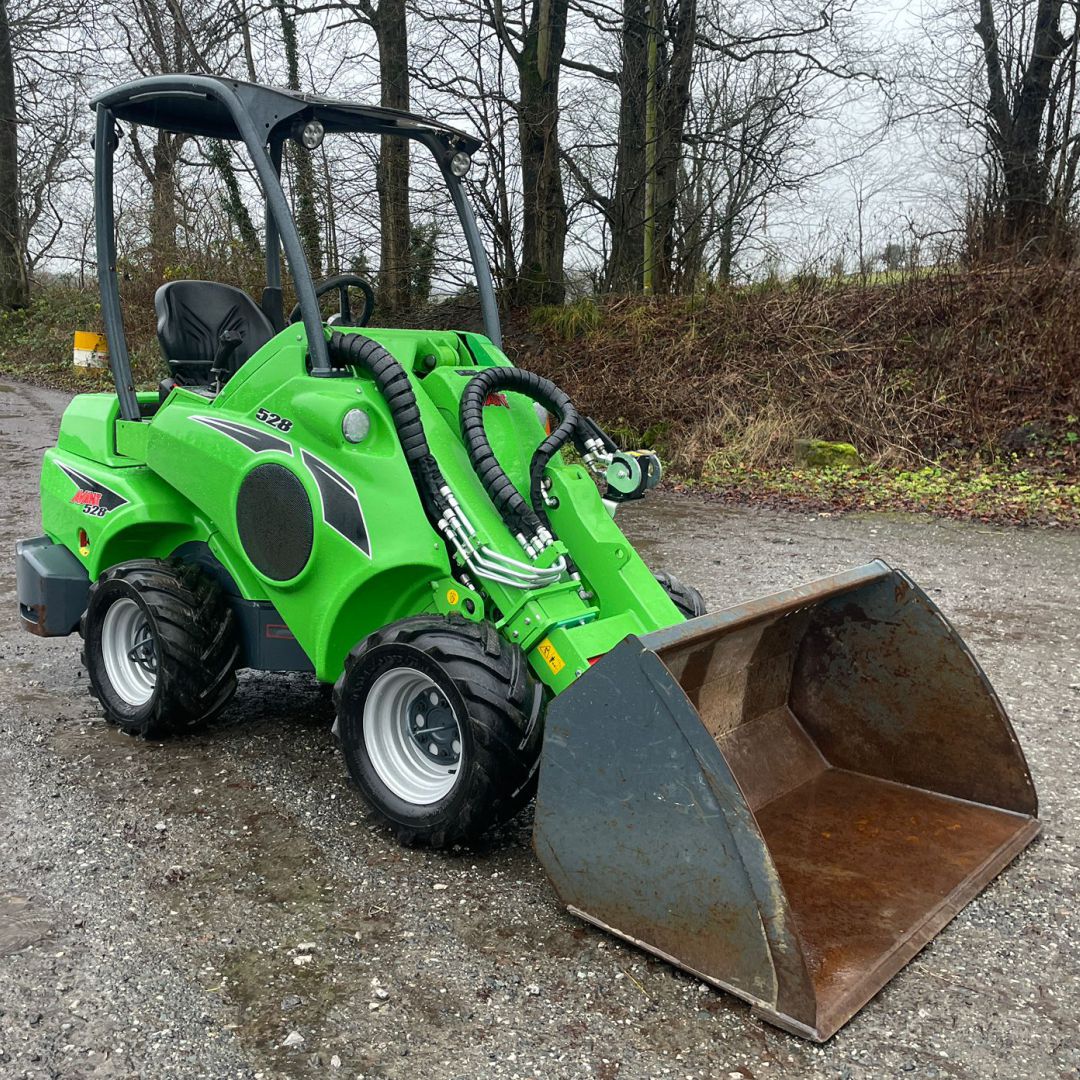

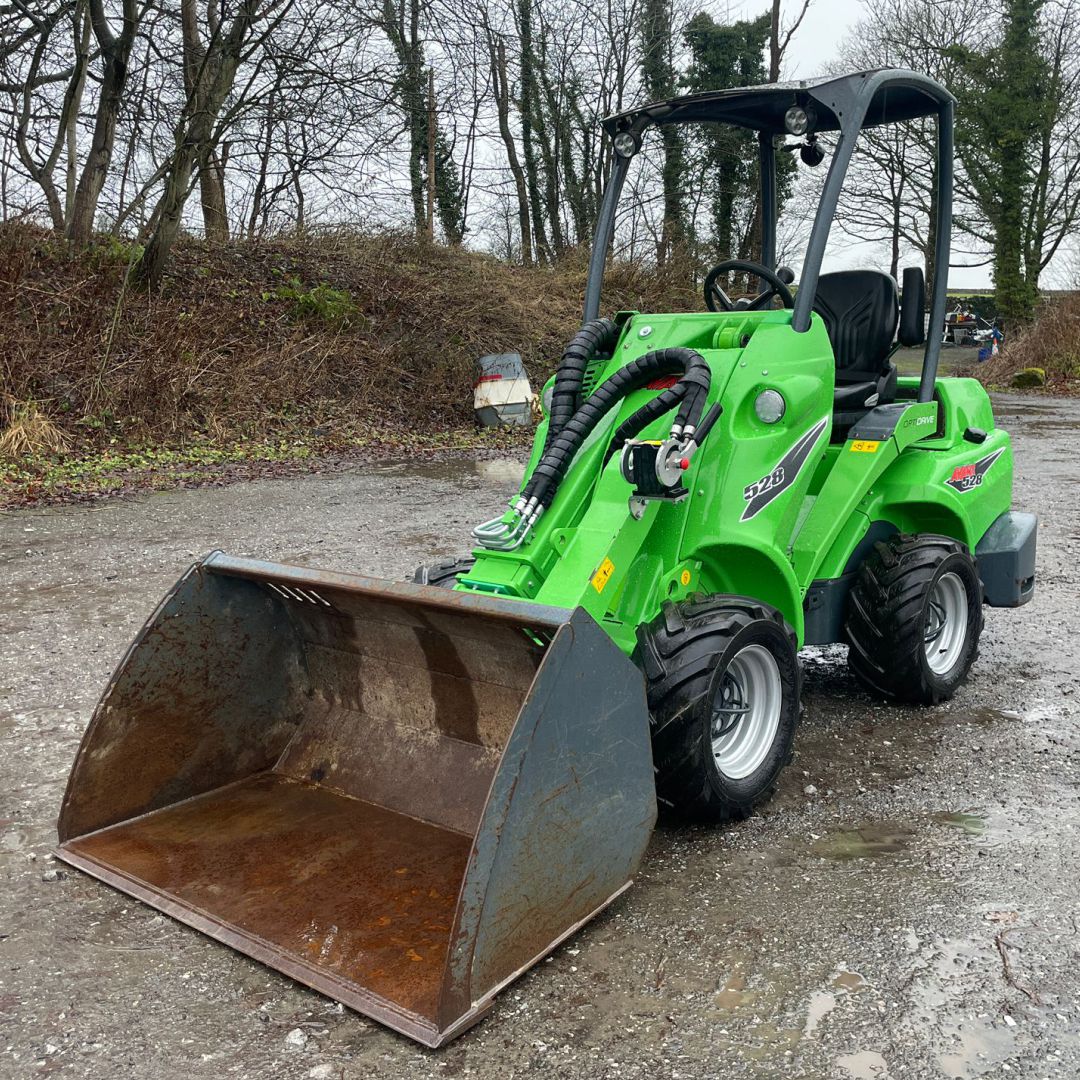

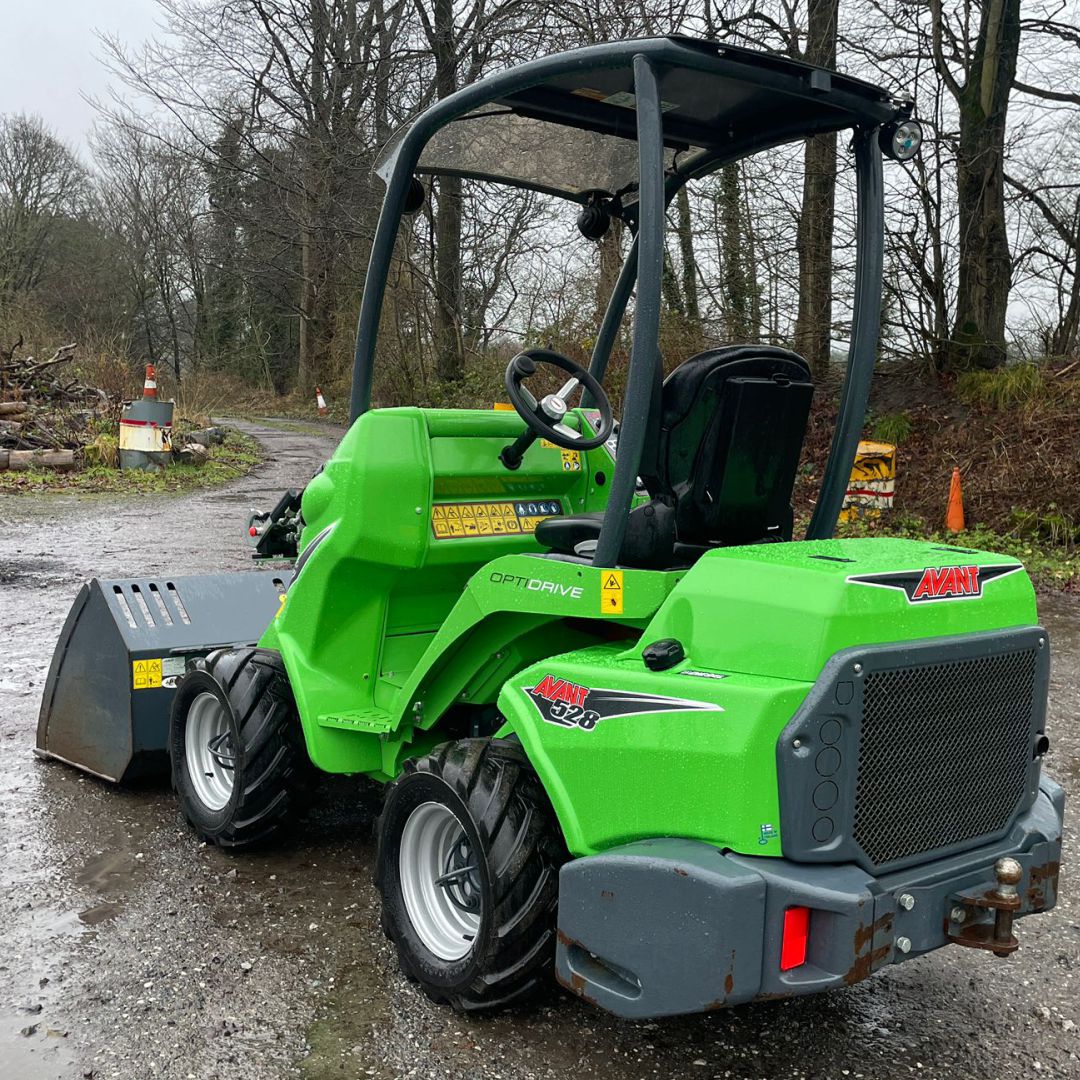

EX Demo Avant 528 Loader

£22,575.00

The Avant 500 series offers a strong balance of power, reliability and simplicity. Its straightforward hydraulics, impressive lift capacity and compact size make it suitable for a wide range of tasks and working environments. Despite its small footprint, it handles heavy loads with ease and delivers excellent maneuverability.

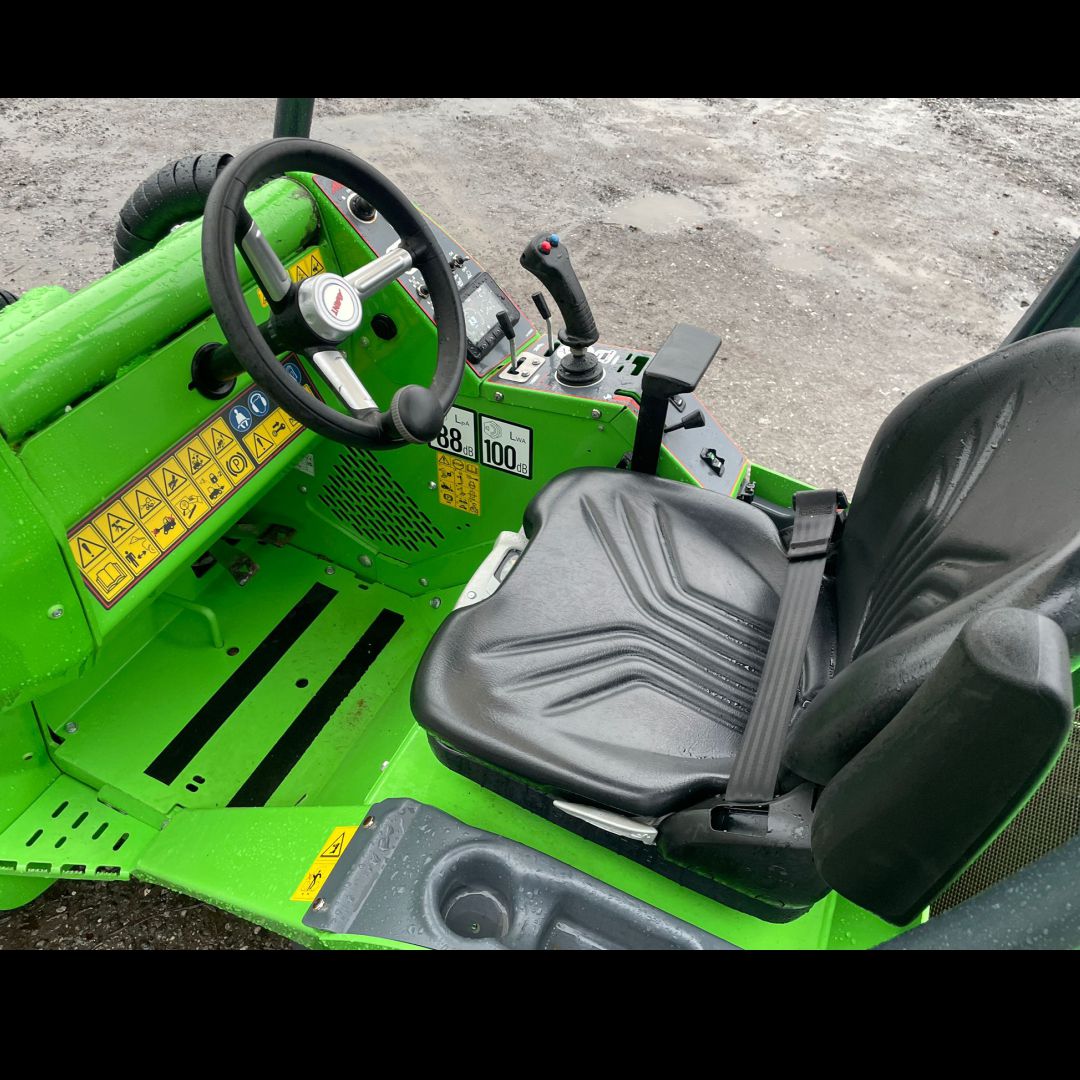

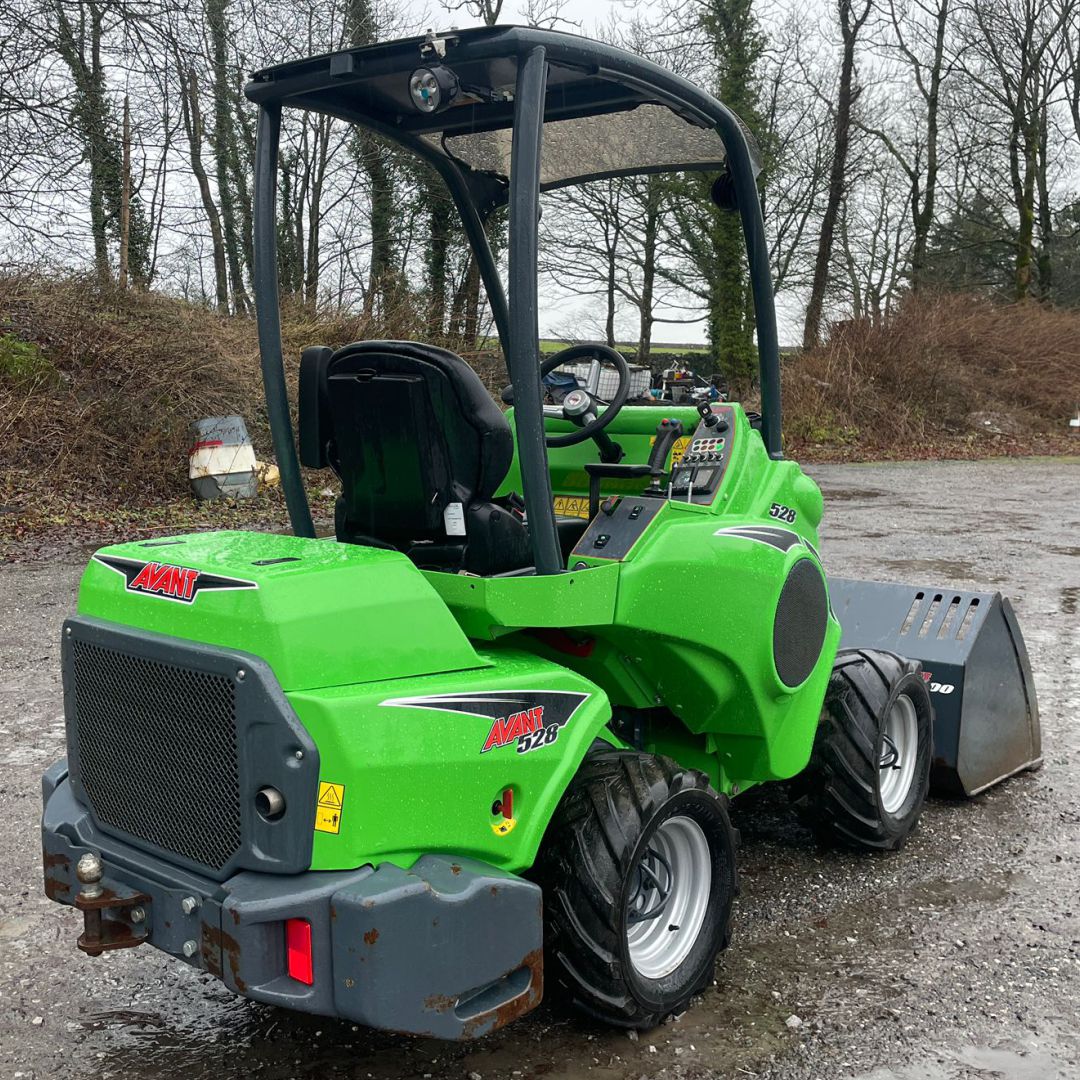

Safety and stability are built into its articulated design, with the operator positioned for clear visibility and a low centre of gravity. All models include a ROPS/FOPS-certified cab as standard, with several enclosed cab options available.

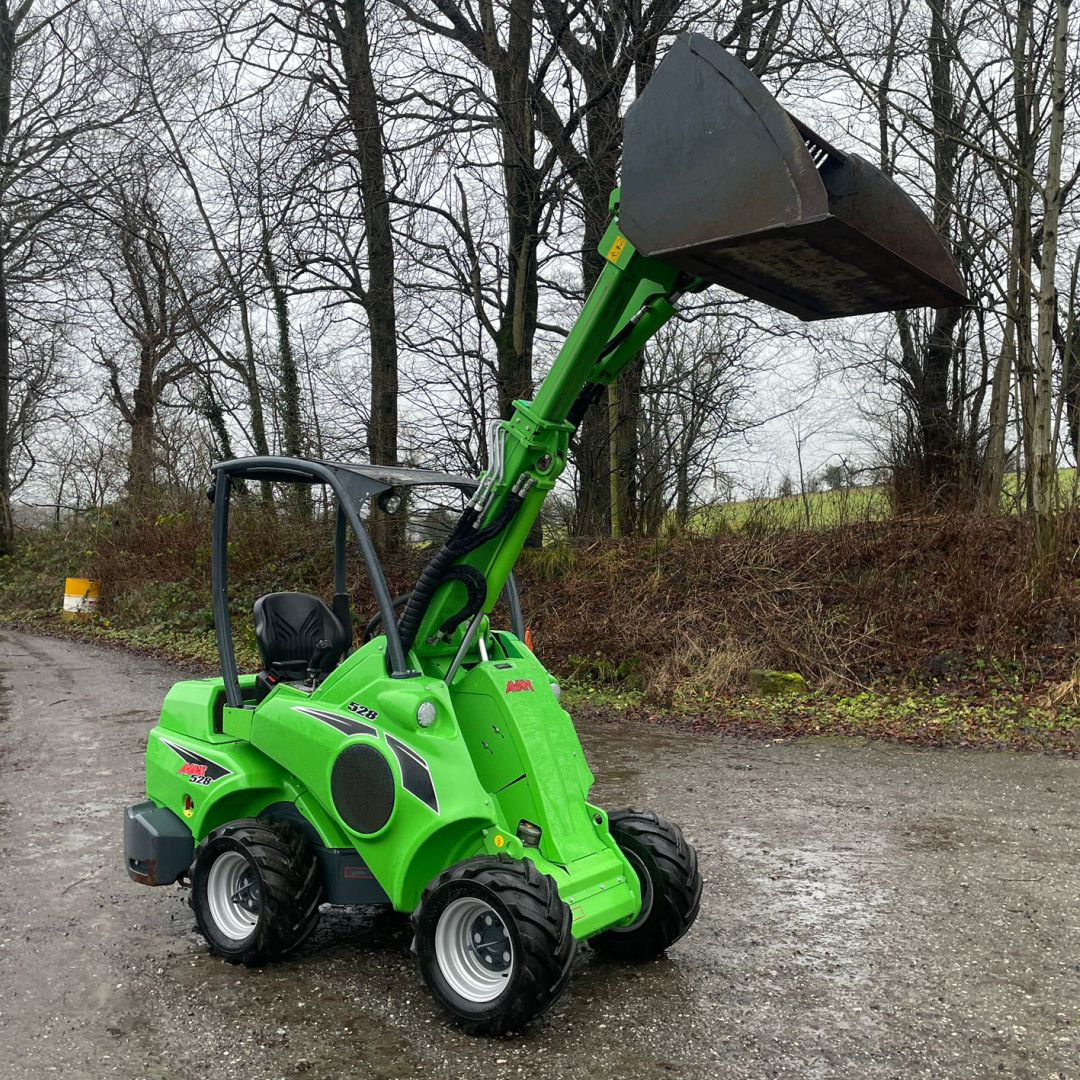

The telescopic boom provides outstanding reach and lift height without compromising machine size. It allows loading from one side and maintains excellent visibility during operation.

Avant attachments are specifically designed to match the loader’s performance, ensuring efficient, year-round use. Options such as multiple cab types, lighting packages and the Opticontrol system enhance comfort and productivity in all seasons.

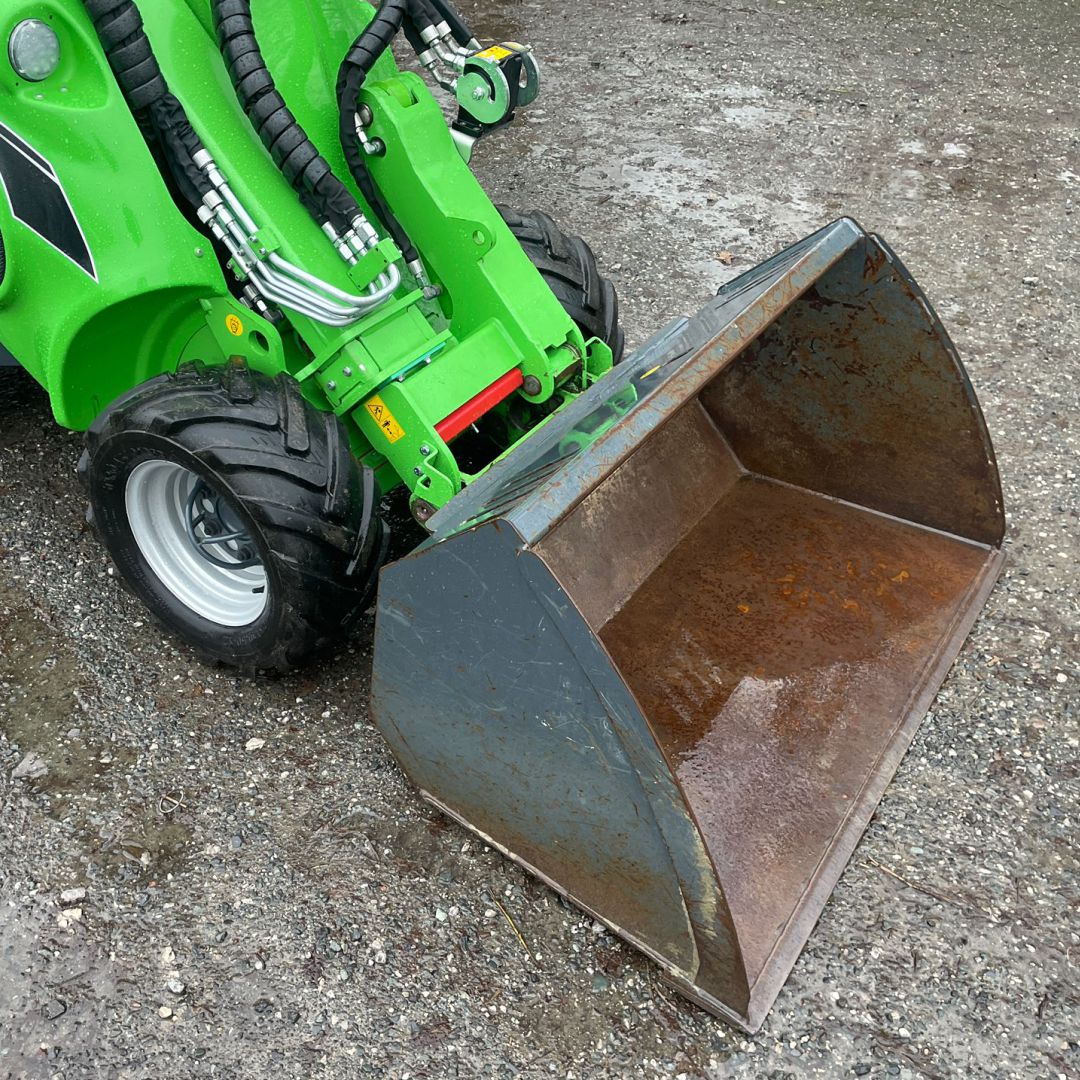

The hydraulic multi-connector system allows quick, clean and simple attachment changes, even under pressure or in cold weather. The hydrostatic 4×4 drive system delivers strong traction while minimising tyre wear and surface damage.

Category:

Description

SPECIFICATIONS

Length 2570 mm
Width 1130 mm
Height 1985 mm
Weight 1250 + 170 kg
Standard wheels 23×10.50-12”grass/TR
Transmission, drive hydrostatic Avant OptidriveTM
Pulling force 950 kp
Drive speed max. 12 km/h
Aux. hydraulics oil flow / pressure 36 l/min 200 bar
hydraulic oil cooler standard
Turning radius inside/outside 995 / 2050 mm
Max. lifting height 2790 mm
Tipping load 950 kg
Max. breakout force / 50 cm 1250 kg
Engine make and type Kubota D1105 Stage V
Engine output (ISO Gross) 19 kW (26 hp)
maximum torque 72 Nm @ 2200 rpm
Fuel Diesel
product no. A424277

WIDTH

Wheel size Profile Machine width
27 x 8.50 – 15 *) tractor 1030 mm
23 x 8.50 – 12 tractor or grass 1080 mm
23 x 10.50 – 12 tractor or grass 1130 mm
26 x 12.00 – 12 *) tractor or grass 1290 mm
320/60 – 12 HD *) tractor 1290 mm
26,5 x 14.00 – 12 **) grass 1420 mm

*) Bigger wheels will increase total machine height by 20-35 mm

**) requires 40 mm spacers on the wheel hubs

***) Road traffic light kit width for ROPS safety frame is 1090 mm

HEIGHT WITH CAB

Wheel size 26X12.00-12 OR 320/60-12* 27X8.50-15
L Cab 2035 mm 2048 mm
LX Cab 2025 mm 2038 mm
DLX Cab 2045 mm 2058 mm

*) With 23″ wheels machine is 15 mm lower
