ROTATING HD GRAPPLE

£5,405.00

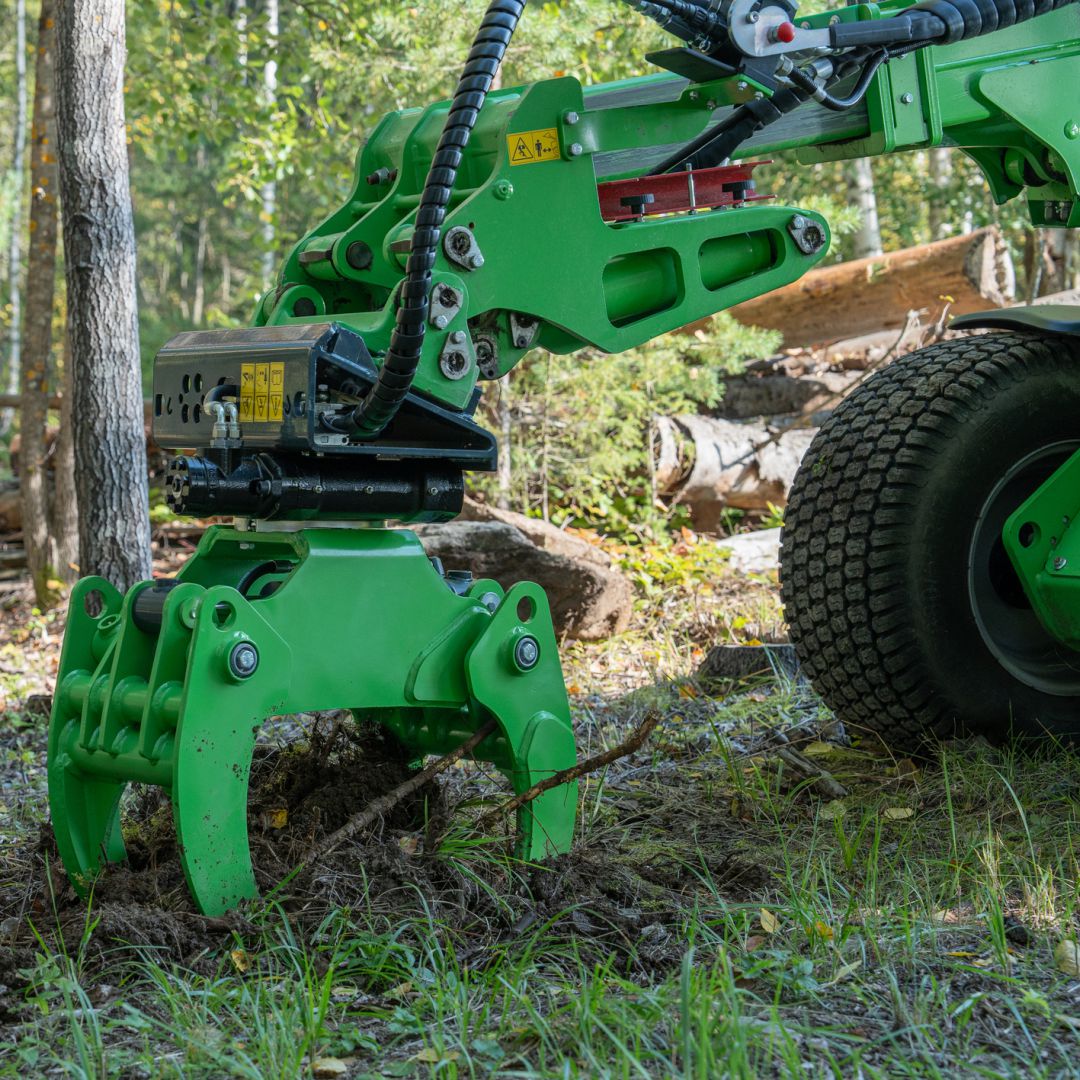

There are two HD grapple models which mount directly on the attachment coupling plate of the loader: one with a hydraulic motor + slewing bearing, allowing unlimited (continuous) rotation in both directions, and one without rotator. They have a different type grapple from the timber grabs. The HD grapple can handle timber as well, but thanks to its sharp claws it can also pick up stones, roots and smaller stumps, as well as remove bushes and other vegetation.

  • Heavy duty grapple, mounts directly on the attachment coupling plate of the loader
  • Two models: with unlimited rotation powered by hydraulic motor + slewing bearing, or without rotation

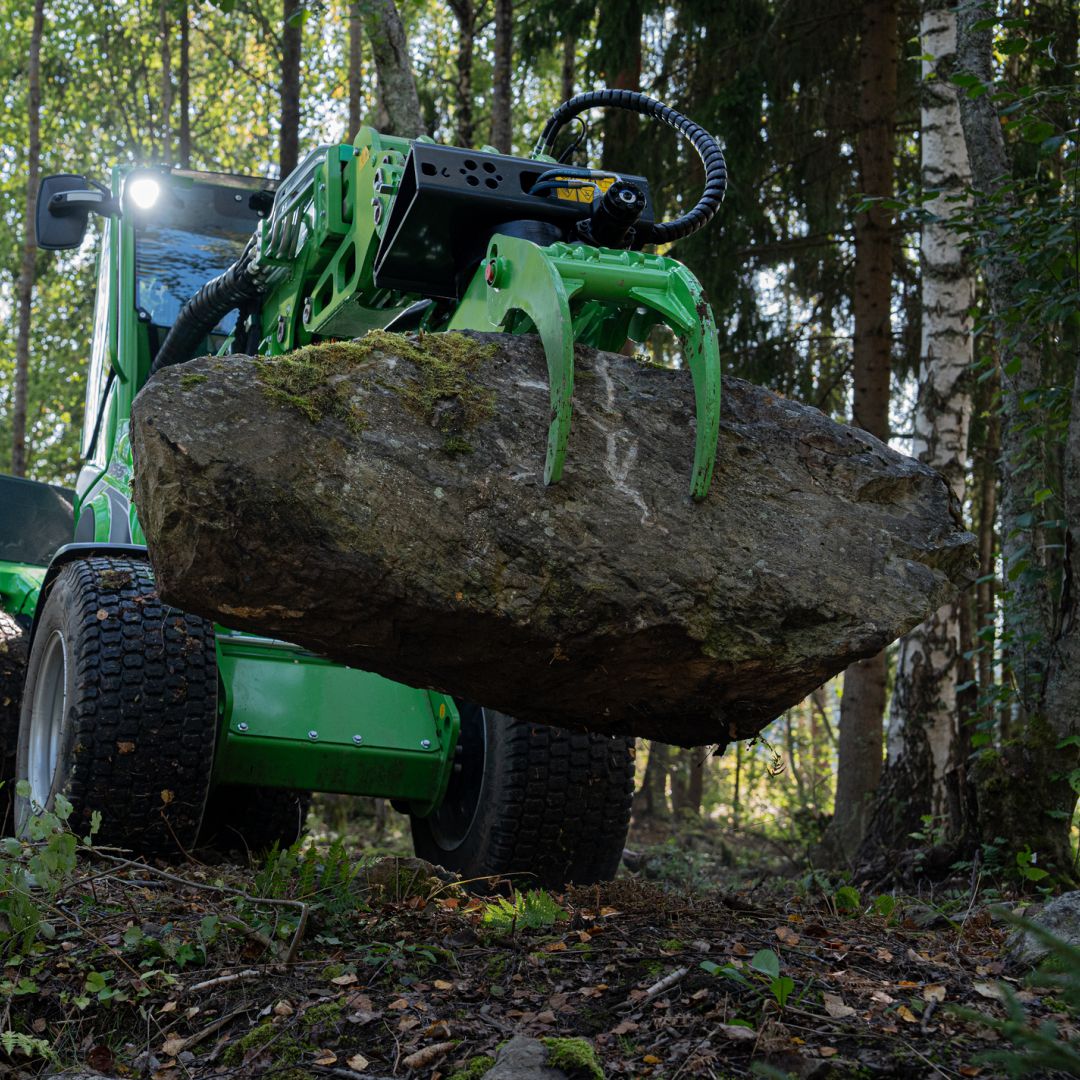

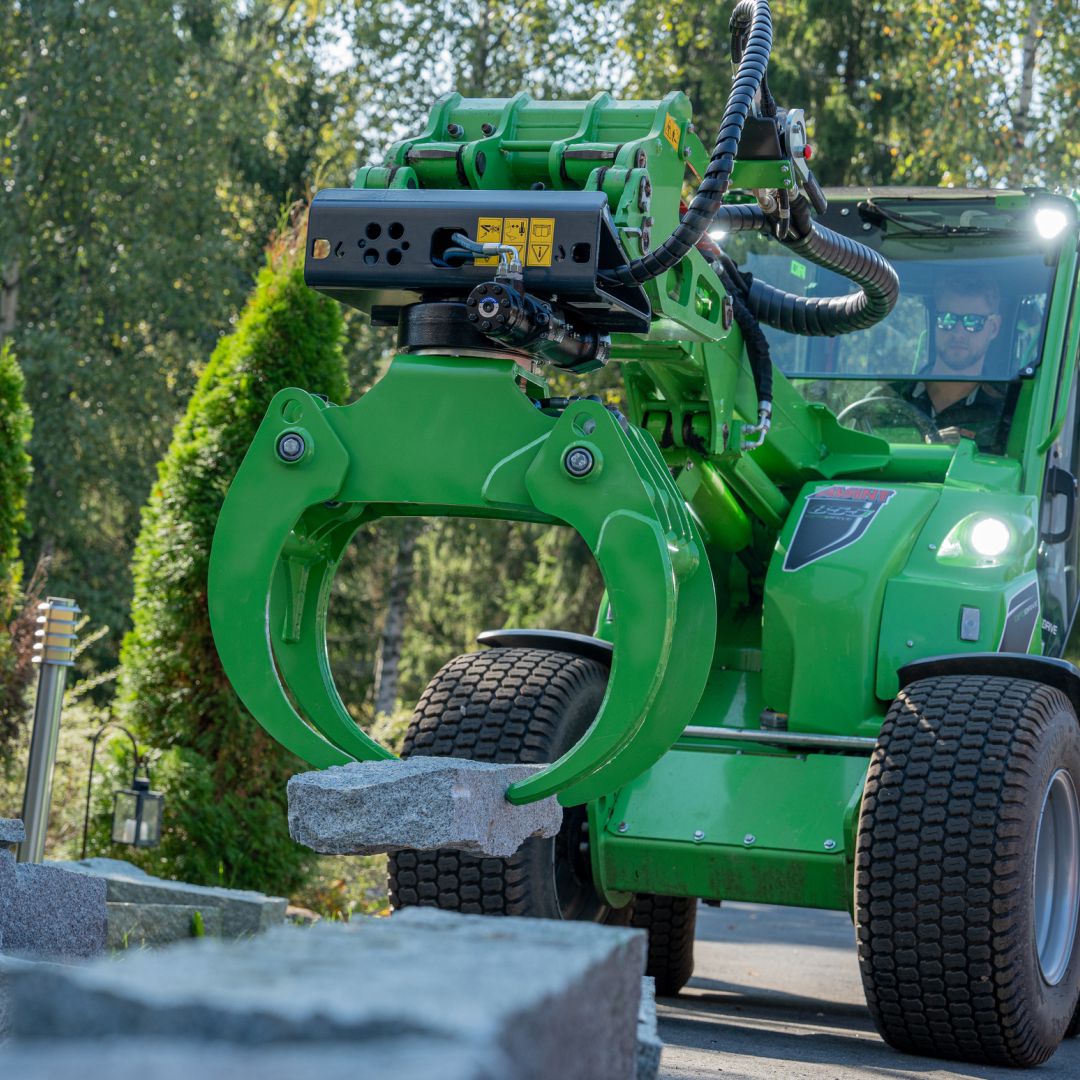

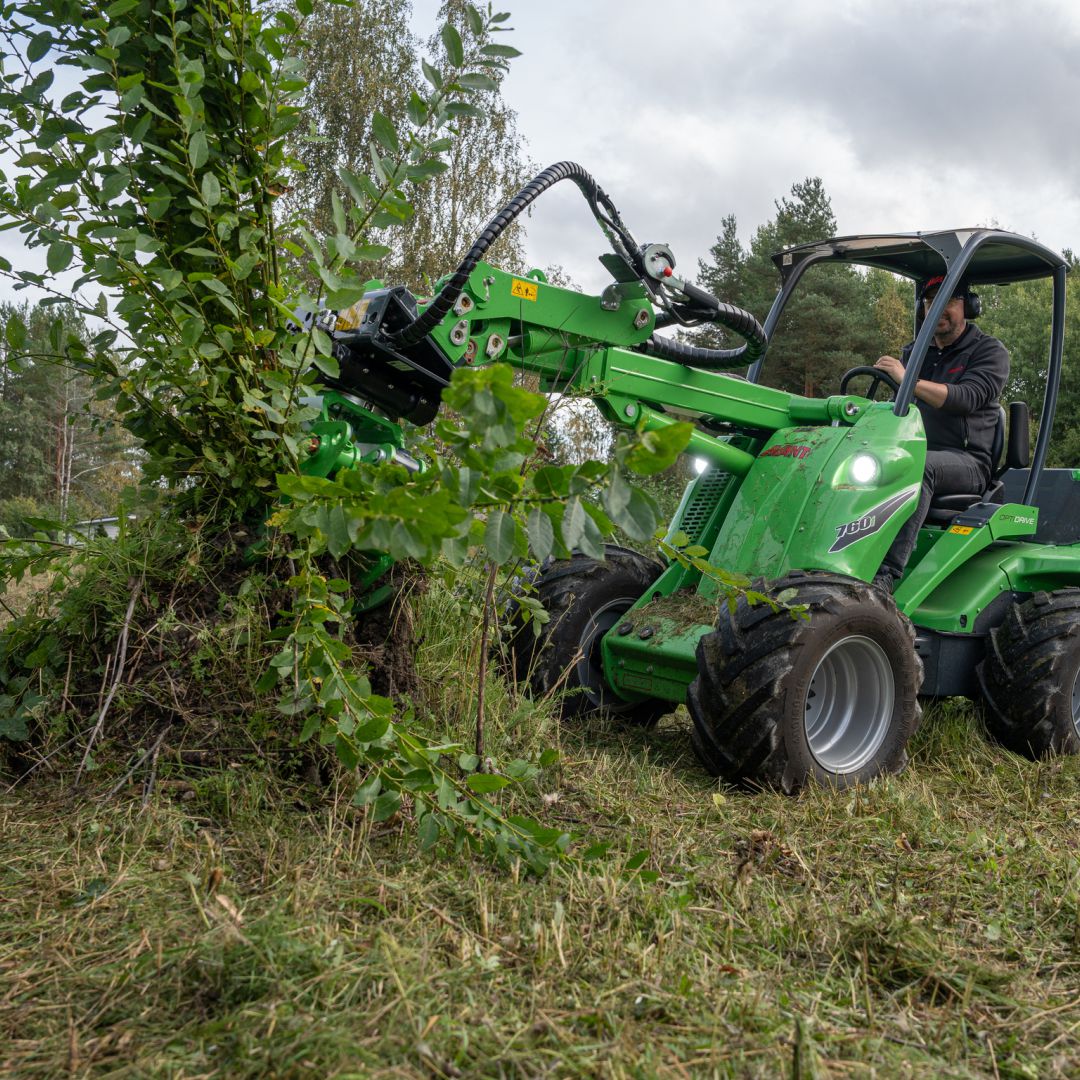

  • Thanks to sharp claws can pick up stones, roots and smaller stumps, as well as remove bushes etc.
  • vegetation

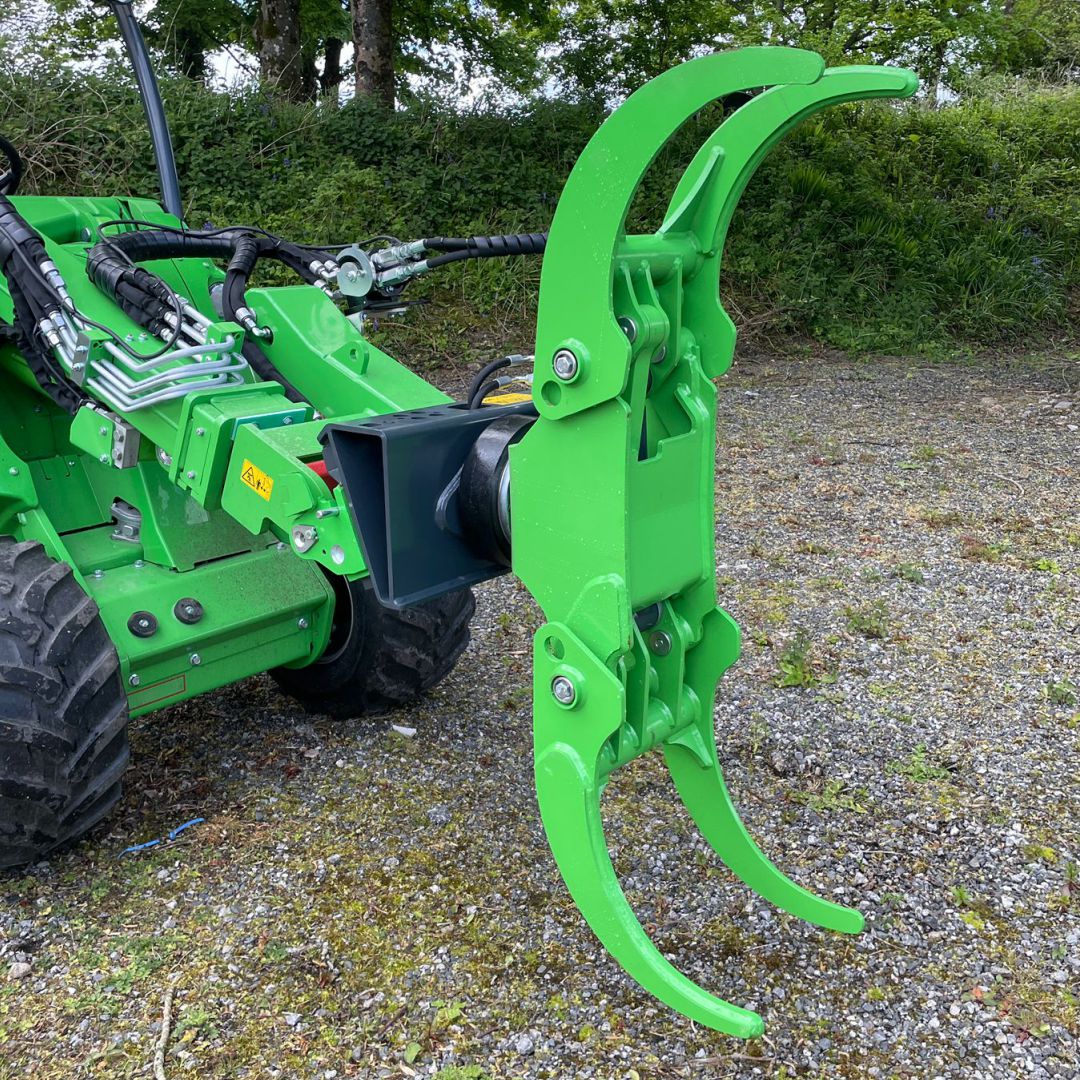

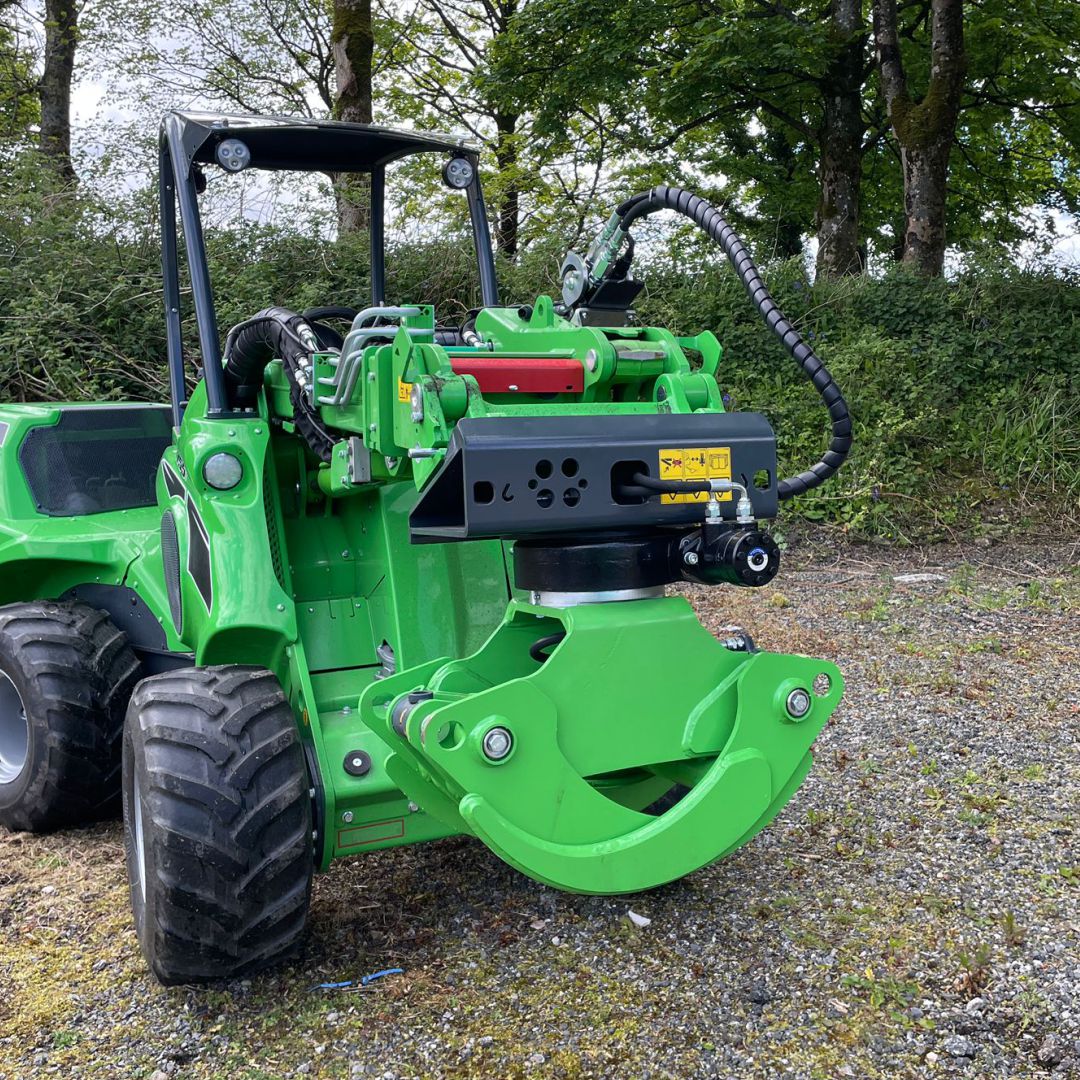

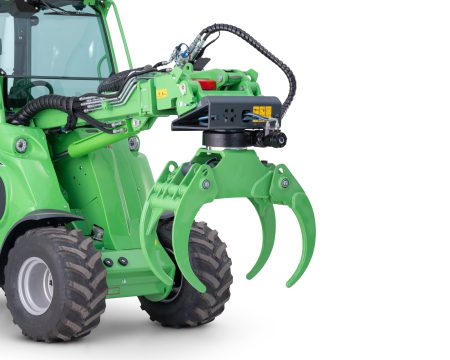

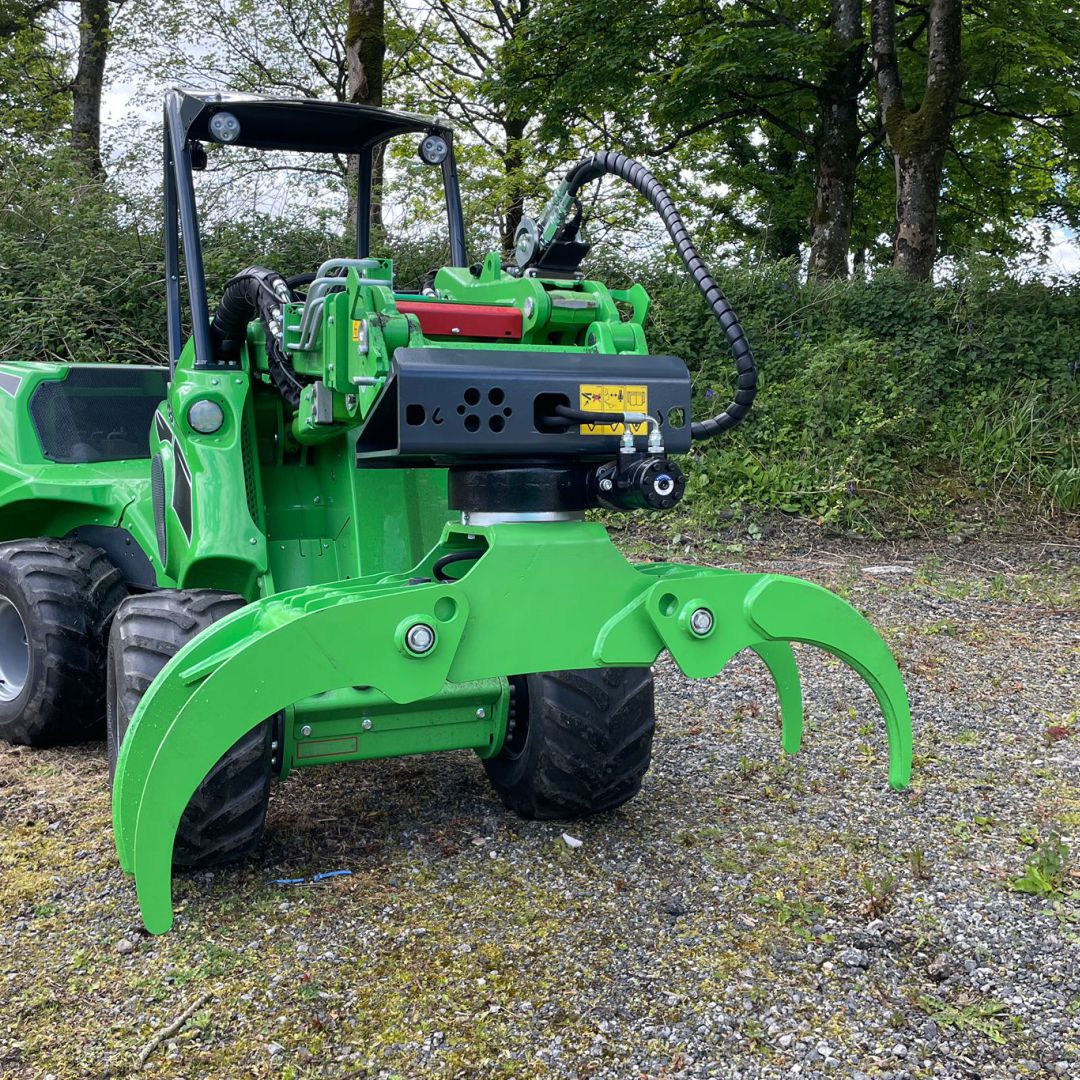

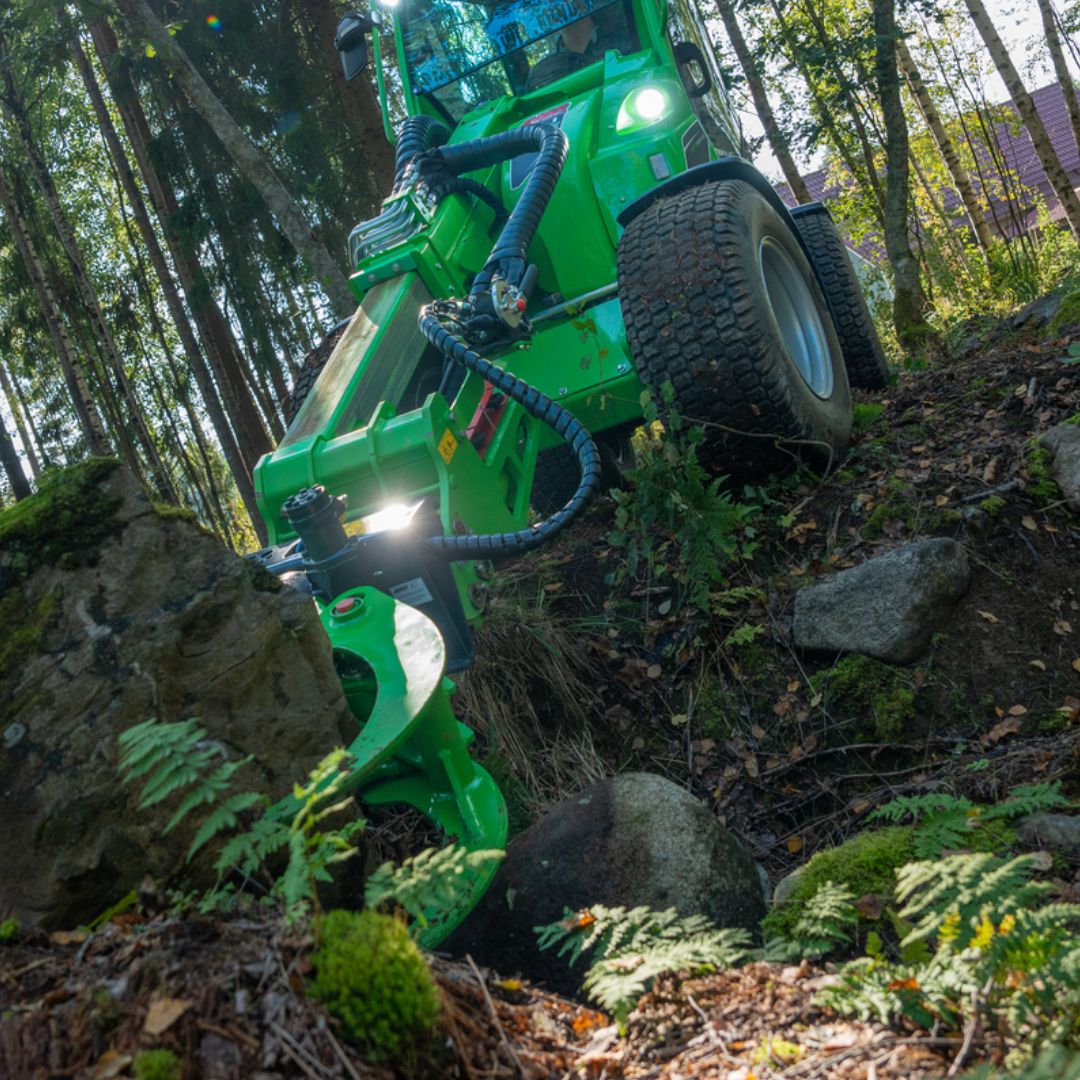

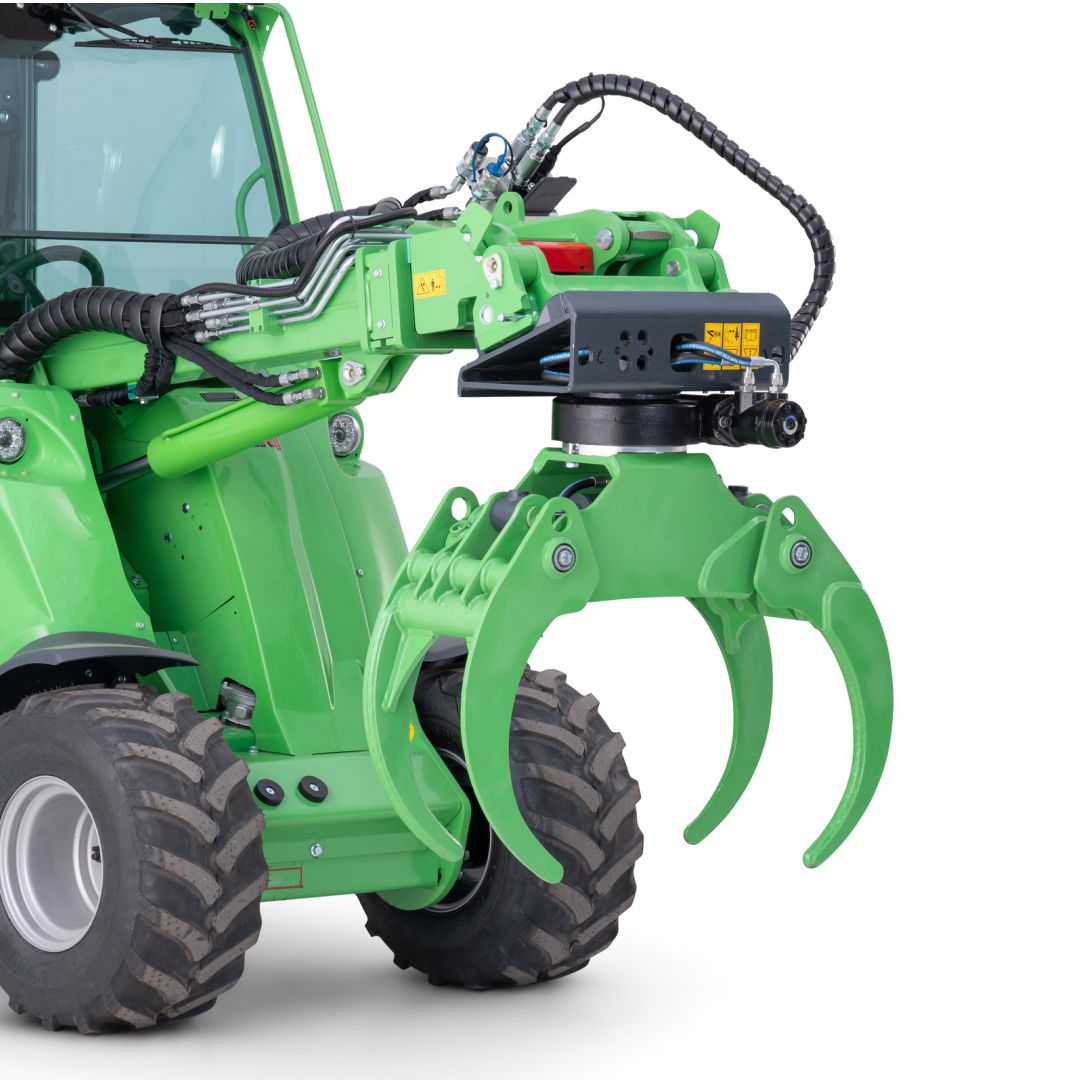

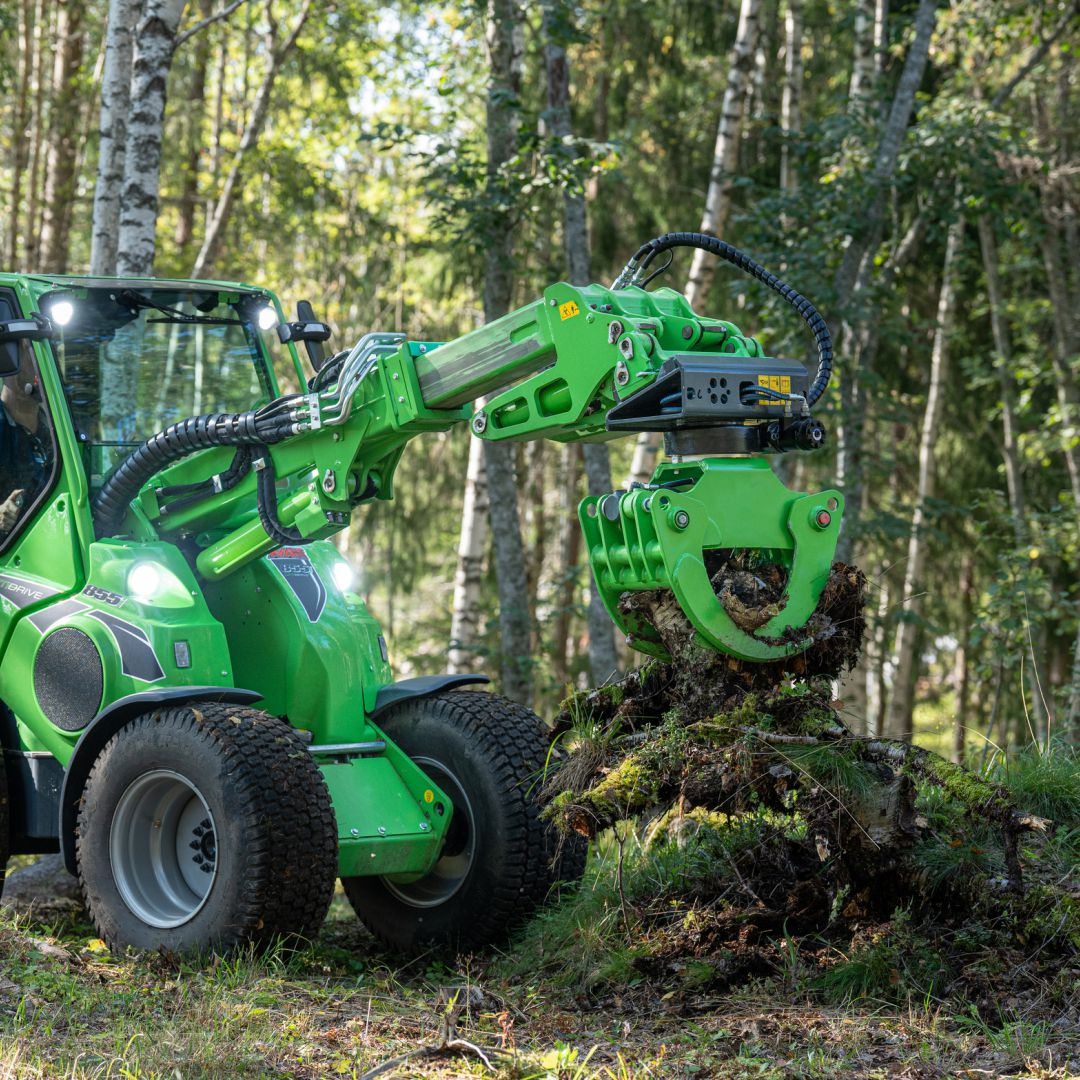

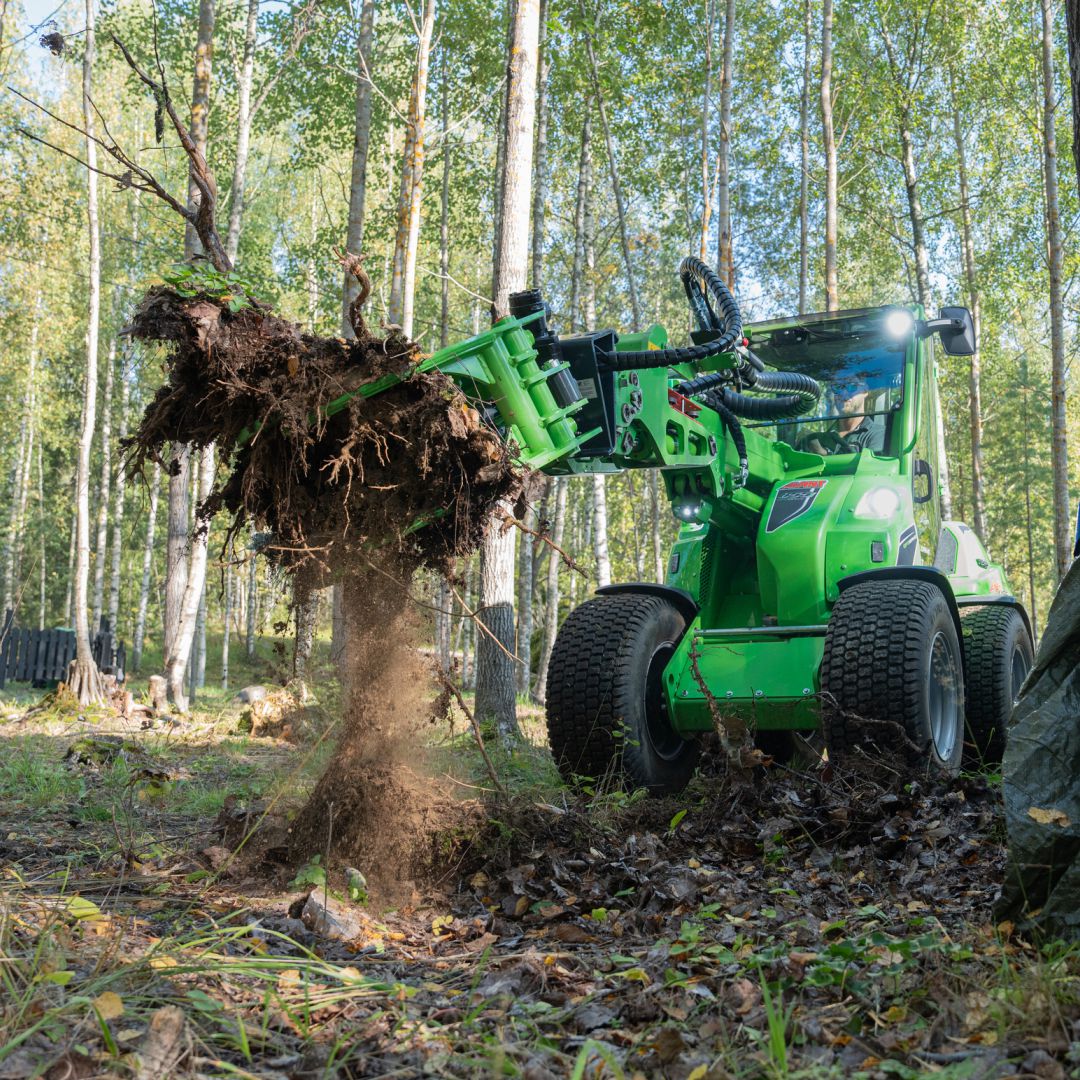

** Pictures depict the A466711 version.

SKU: A466711 Category:

Description

Technical specifications

The optional Opticontrol® is recommended with grab with hydraulic rotator, for operating the grab opening/closing and rotation (requires also 6 or 8 function joystick on the loader).

Rotation type : No rotation
Oil flow range : 10-20 l/min
Weight : 160 kg
Grip area : 0.2 m2
Grip area : 2.2 ft2
Grapple opening diameter max. : 1340 mm
Product number : A436473  £ 3345 ex VAT
The optional Opticontrol ® is recommended with grab with hydraulic rotator, for operating the grab opening/closing and rotation (requires also 6 or 8 function joystick on the loader).
Rotation type : Hydraulic rotation
Oil flow range : 10-20 l/min
Weight : 240 kg
Grip area : 0.2 m2
Grip area : 2.2 ft2
Grapple opening diameter max. : 1340 mm
Product number : A466711 £ 5405 ex VAT



Related products

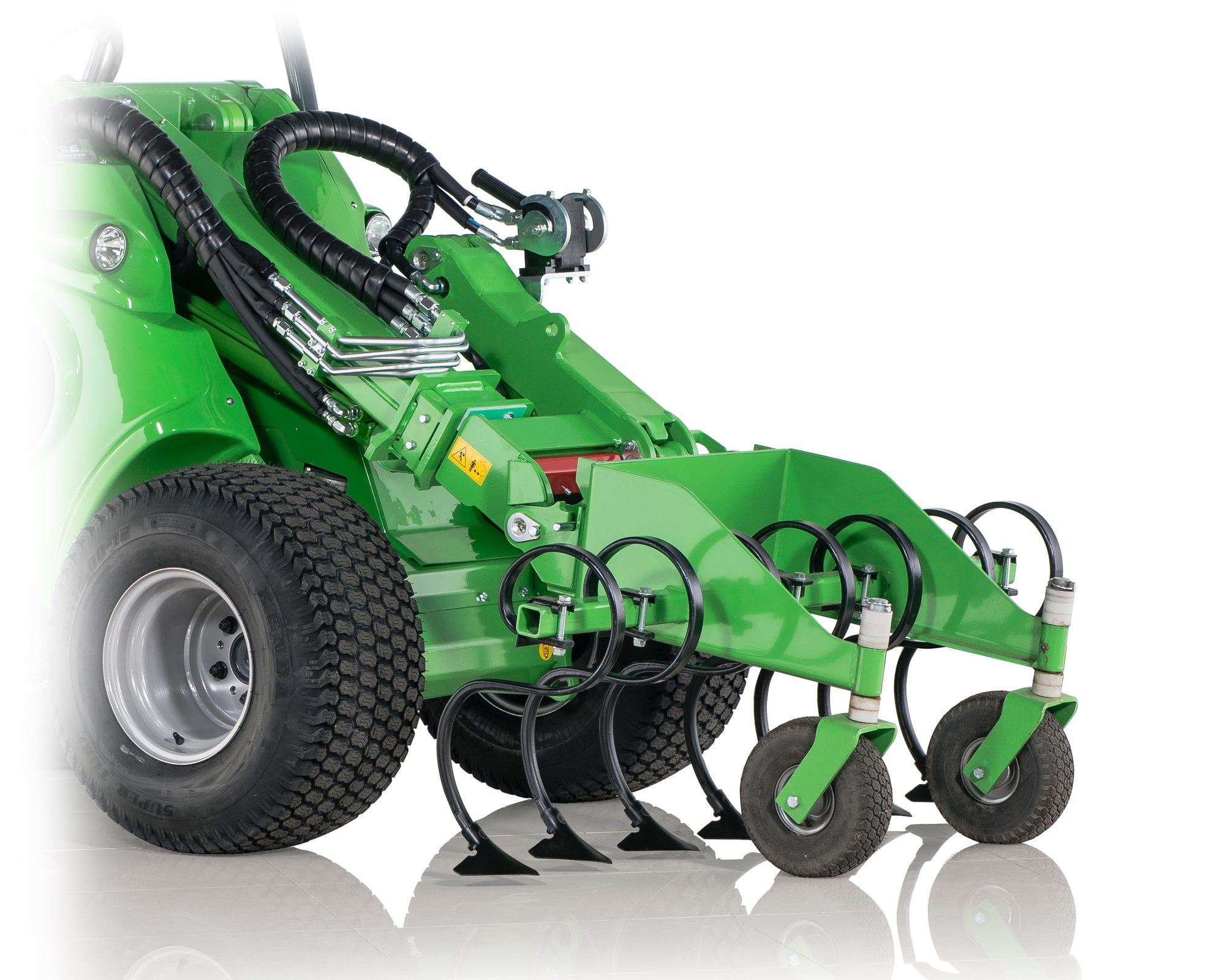

Front CultivatorCustom Avant Loaders
