Description

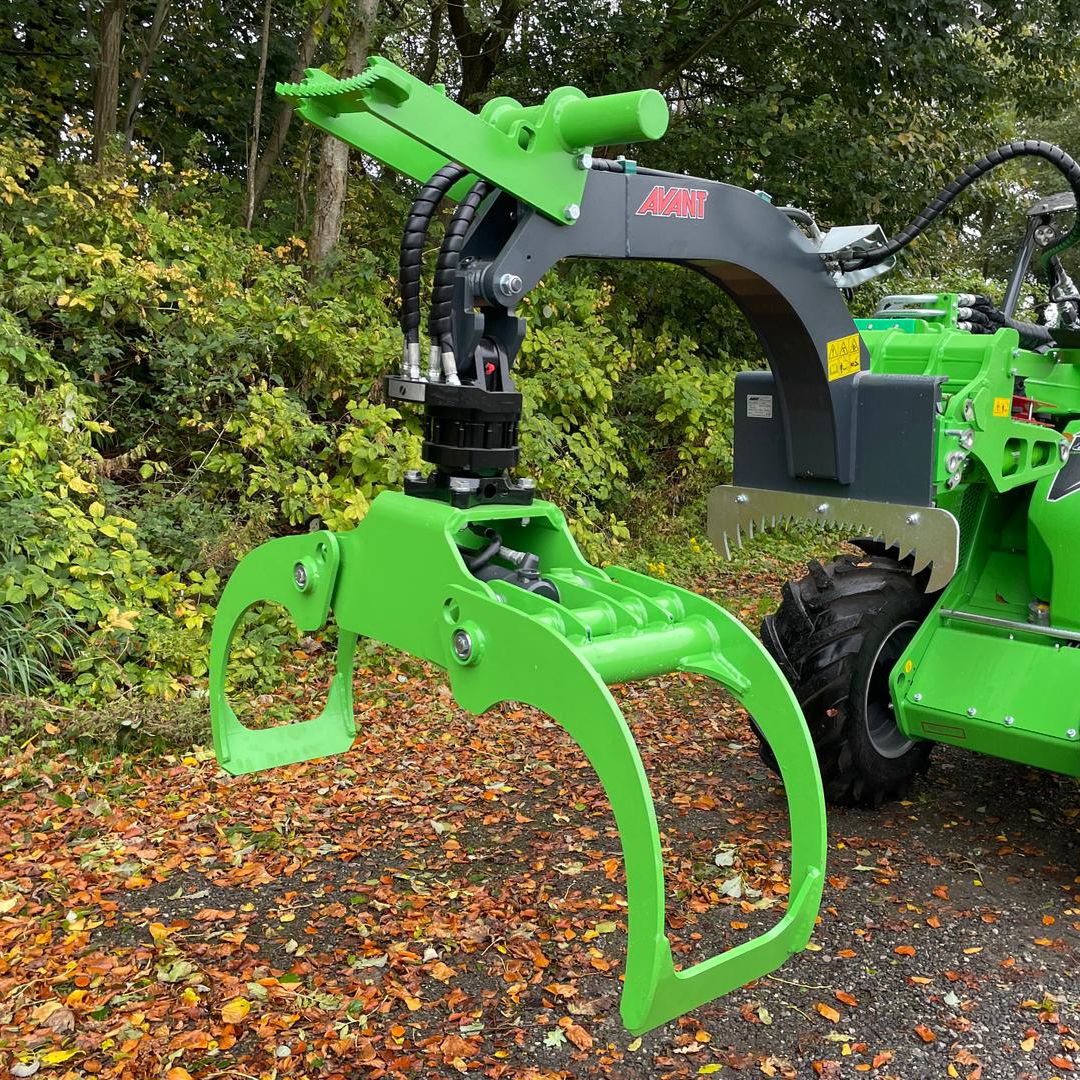

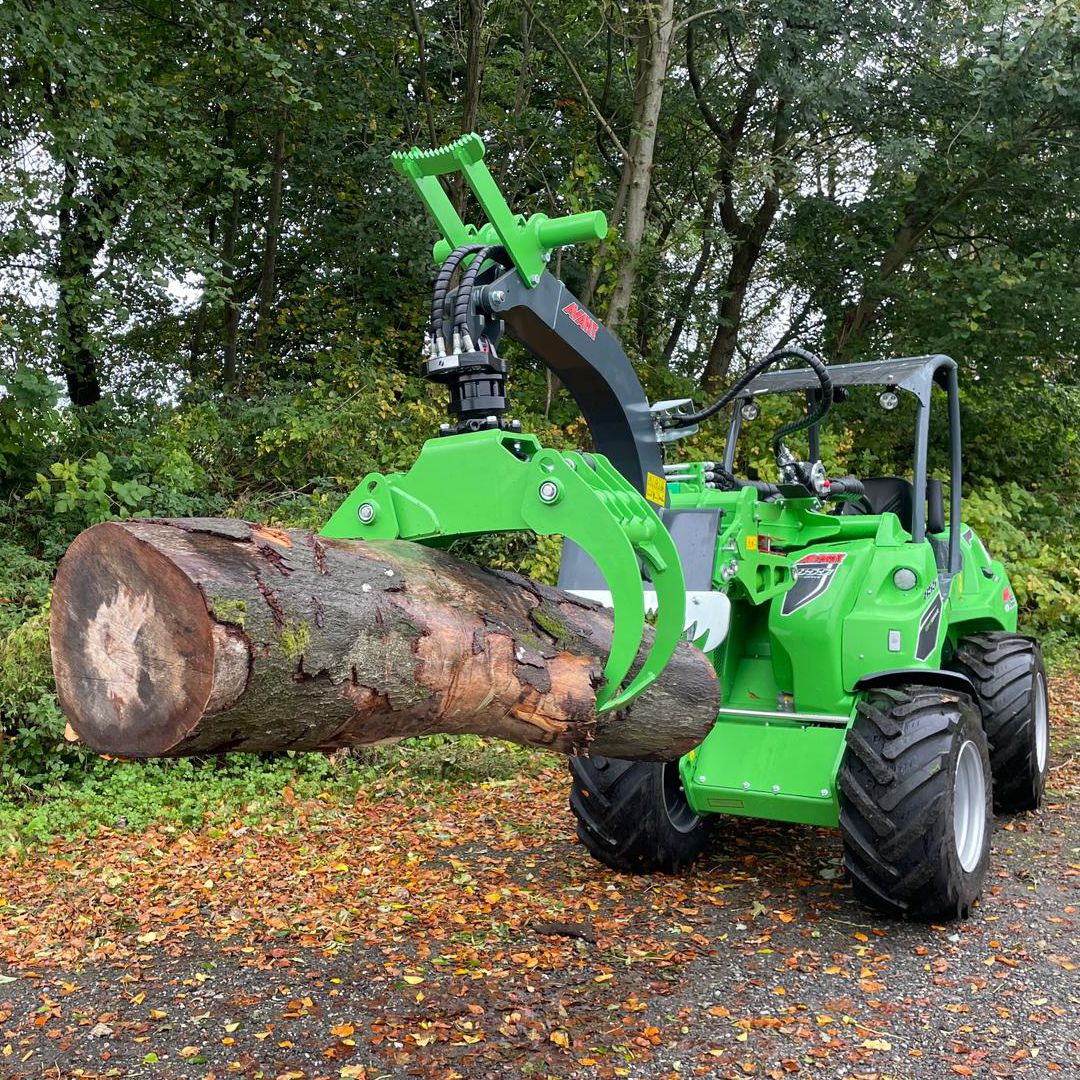

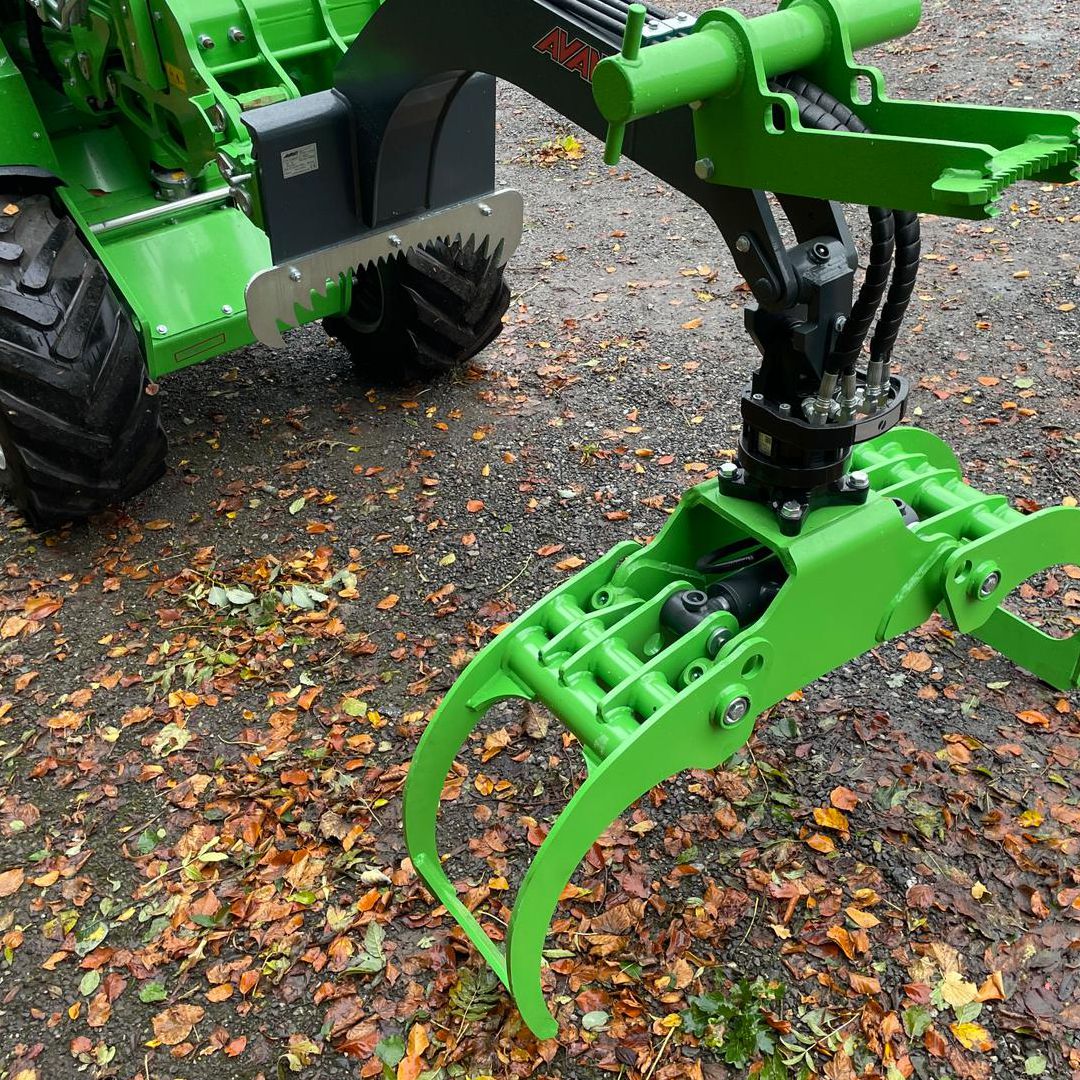

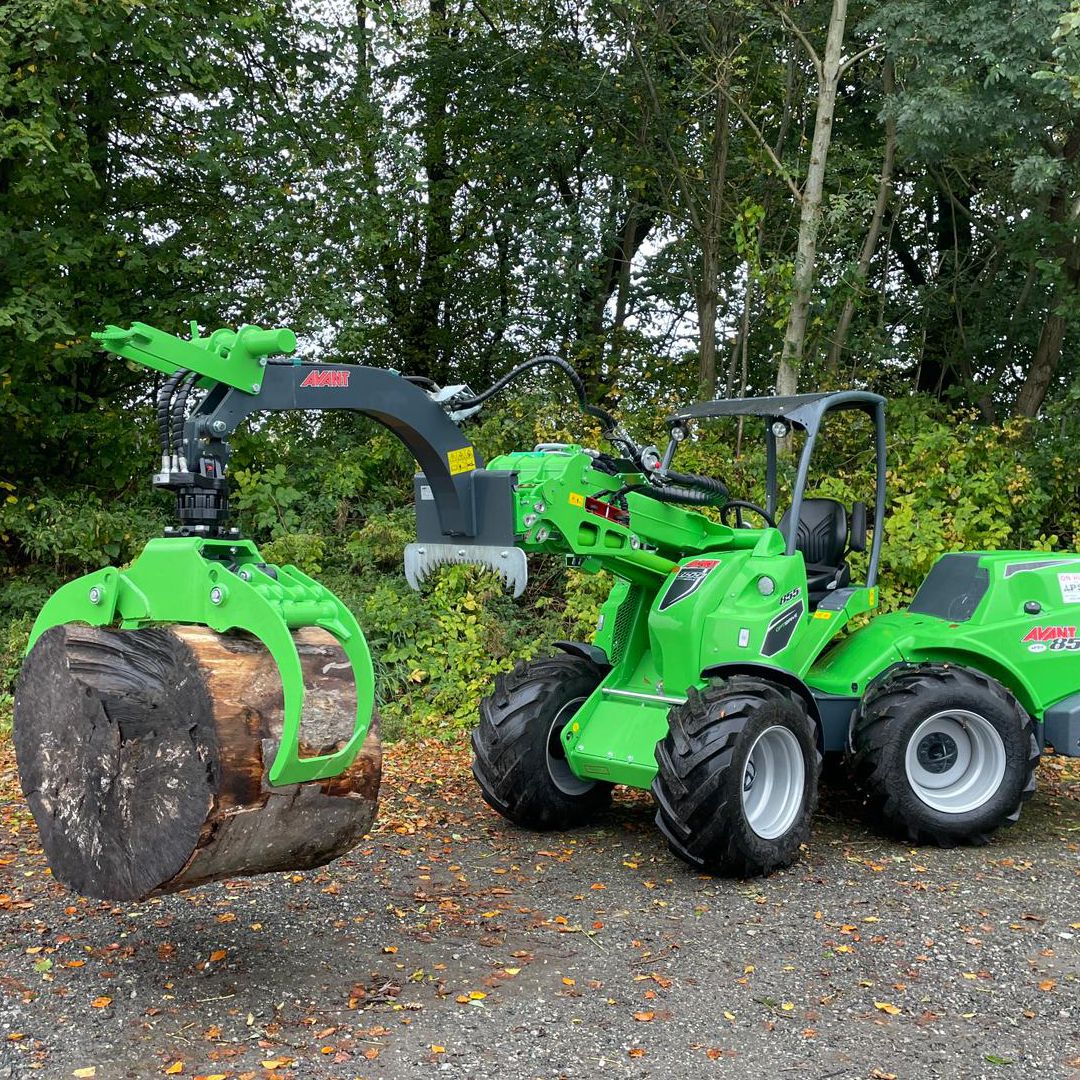

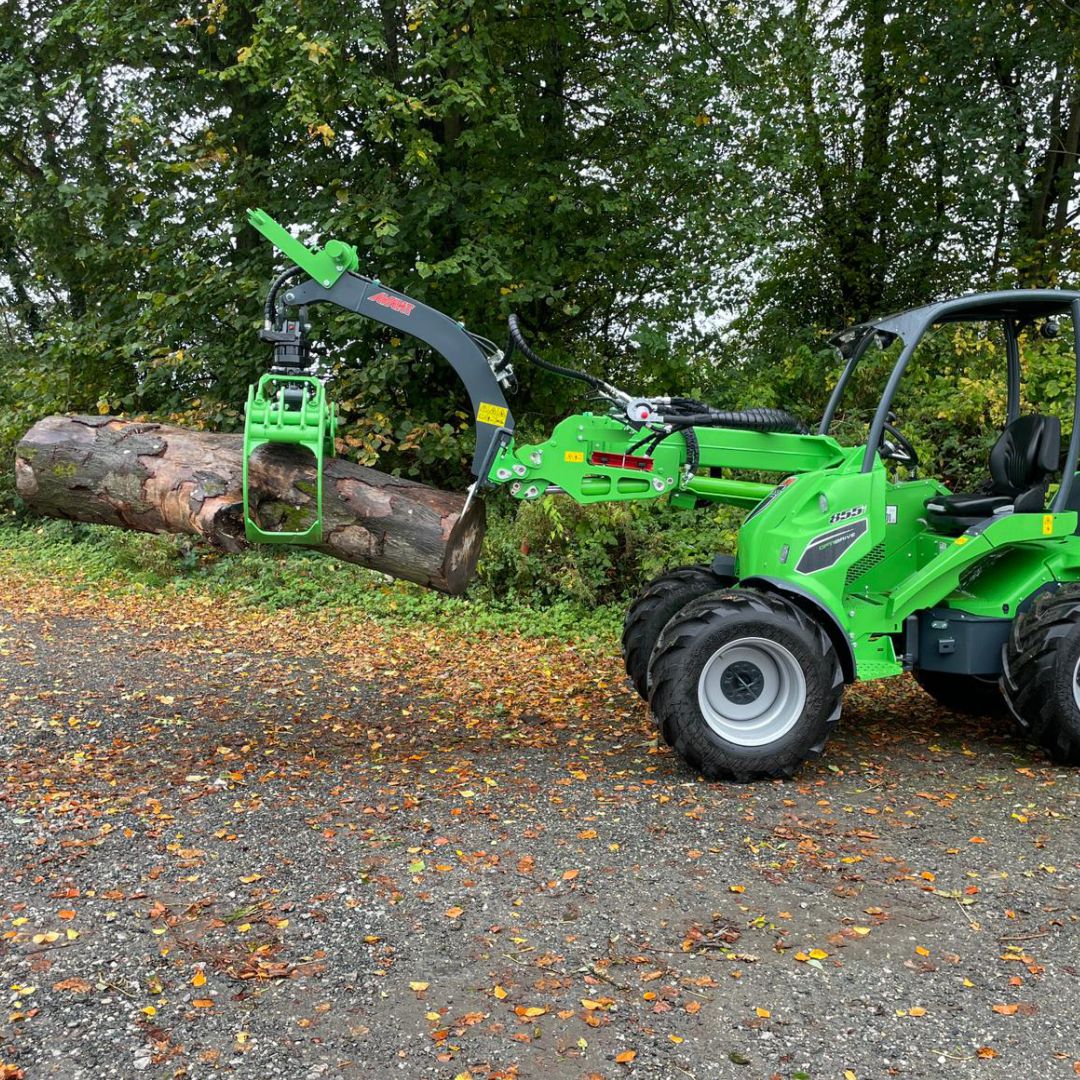

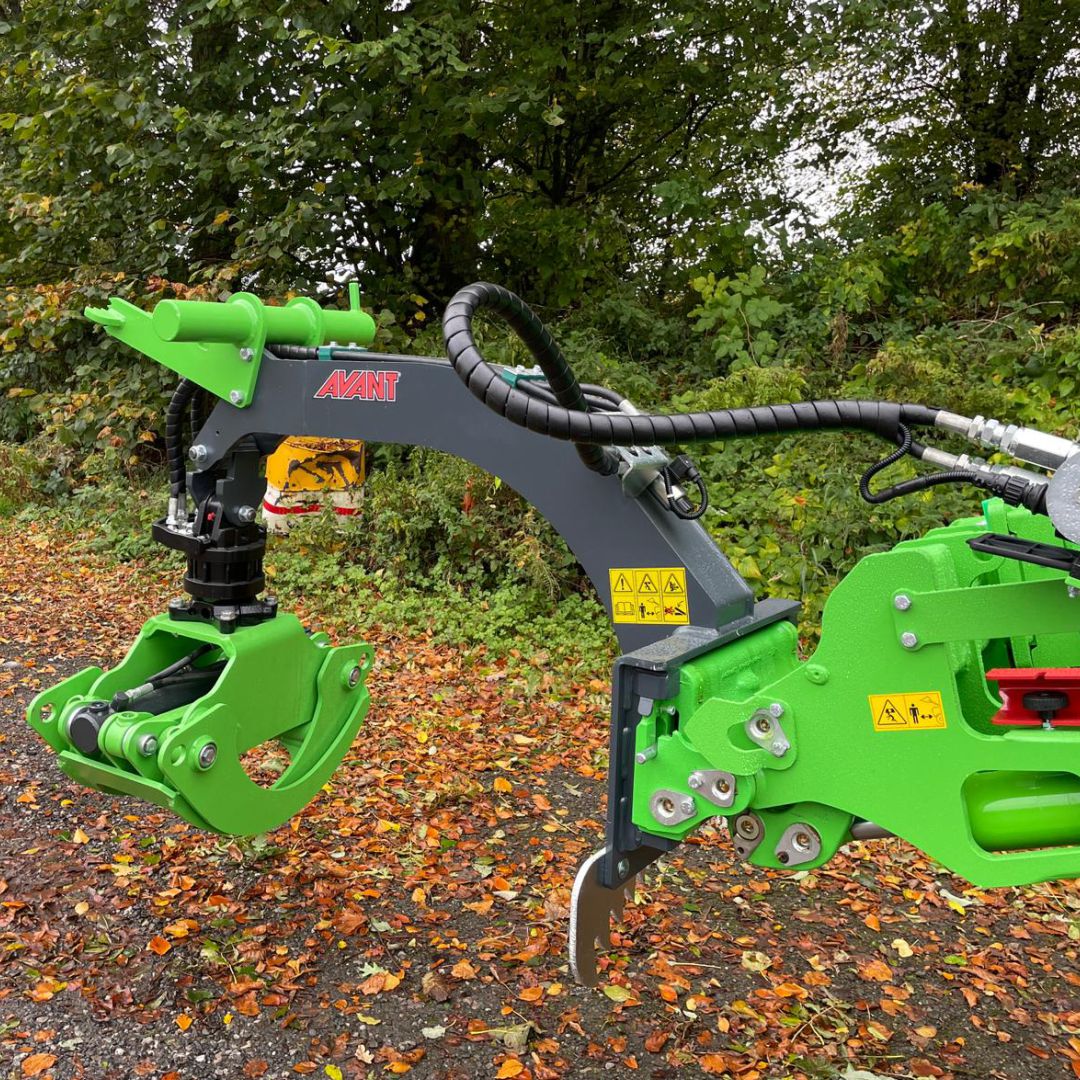

Timber grab is an attachment that allows you to grab tree trunks, branches, wood waste, kerb stones etc. and transport them both lengthwise and crosswise.
TIMBER GRAB FREELY ROTATING A462525
Technical specifications
- Oil flow range : 10-20 l/min
- Weight : 150 kg
- Grip area : 0.16 m2
- Grip area : 1.7 ft2
- Grapple opening diameter max. : 1223 mm
- Max. load : 1300 kg
- Product number : A462525
TIMBER GRAB HYDRAULIC ROTATION A462524
Technical specifications
The optional Opticontrol® is recommended with grab with hydraulic rotator, for operating the grab opening/closing and rotation (requires also 6 or 8 function joystick on the loader).
- Oil flow range : 10-20 l/min
- Weight : 170 kg
- Grip area : 0.16 m2
- Grip area : 1.7 ft2
- Grapple opening diameter max. : 1223 mm
- Max. load : 1300 kg
- Product number : A462524
TIMBER GRAB HD A438973
The heavy duty timber grab is equipped with a stronger boom and hydraulic rotator and larger grapple.
Technical specifications
The optional Opticontrol ® is recommended with grab with hydraulic rotator, for operating the grab opening/closing and rotation (requires also 6 or 8 function joystick on the loader).
- Rotation type : Hydraulic rotation
- Oil flow range : 10-20 l/min
- Weight : 280 kg
- Grip area : 0.2 m2
- Grip area : 2.2 ft2
- Grapple opening diameter max. : 1340 mm
- Max. load : 1800 kg
- Product number : A438973
